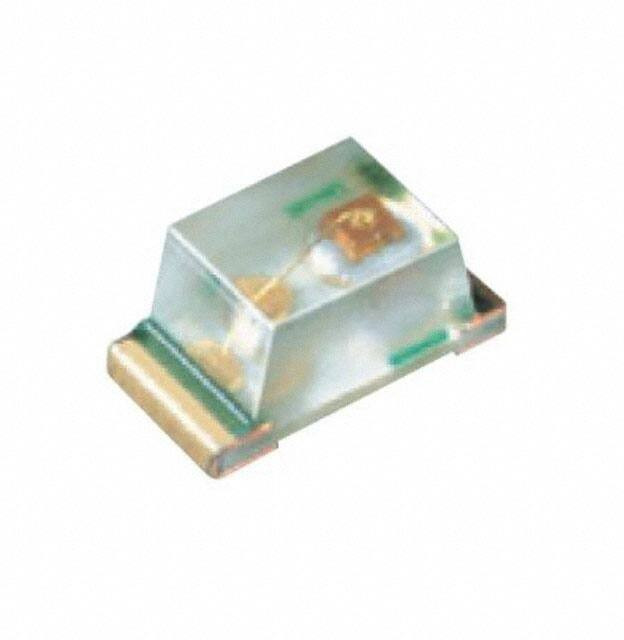

FKR1111C-TR, Standard LEDs - SMD Surface Mount LED

Оставить отзыв
В избранноеВ сравнение
Артикул: FKR1111C-TR
Оптоэлектроника Светодиоды видимого спектра Круглые Stanley Electric FKR1111C-TR, Standard LEDs - SMD Surface Mount LED
Основные
ПроизводительStanley Electric Co. Ltd.
БрендStanley Electric Co. Ltd.
Информация о производителе
colorRed
configurationStandard
110
+
Бонус: 2.2 !
Бонусная программа
Итого: 110
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Optoelectronics\LED Lighting\LED Emitters\Standard LEDs - SMDSurface Mount LEDs Stanley Electric Surface Mount LEDs are offered in standard colors blue, red, and white. The LED series features different size package variations and different light distribution. Various lineups meet the requirements of automotive standards.
Основные
ПроизводительStanley Electric Co. Ltd.
БрендStanley Electric Co. Ltd.
Информация о производителе
colorRed
configurationStandard
current - test20mA
Дата загрузки09.05.2024
eccnEAR99
factory pack quantity: factory pack quantity:4000
height (max)0.80mm
htsus8541.40.2000
if - forward current:20 mA
illumination colorRed
категорияОптоэлектроника/Светодиоды видимого спектра
lens colorMilky White
lens dimensions:1.2 mm x 0.8 mm
lens shape:Rectangular
lens size1.20mm x 0.80mm
lens styleRectangle with Flat Top
lens transparencyDiffused
lens transparency:Diffused
luminous intensity:220 mcd
manufacturer:Stanley Electric
maximum operating temperature:+85 C
millicandela rating310mcd
minimum operating temperature:-40 C
moisture sensitive:Yes
moisture sensitivity level (msl)4 (72 Hours)
mounting style:SMD/SMT
mounting typeSurface Mount
orientation:Top View
packageTape & Reel (TR)Cut Tape (CT)Digi-ReelВ®
package / case0603 (1608 Metric)
package / case:0603(1608 metric)
партномер8004786979
power rating:84 mW
product:Red LEDs
product category:Standard LEDs-SMD
product type:LED-Standard
reach statusREACH Unaffected
rohs statusRoHS Compliant
series:1C
size / dimension1.60mm L x 0.80mm W
subcategory:LEDs
supplier device package1608
вес, г0.03
vf - forward voltage:2.1 V
viewing angle:110 deg x 140 deg
voltage - forward (vf) (typ)2.1V
Время загрузки23:25:11
wavelength/color temperature625 nm
wavelength - dominant626nm
wavelength - peak638nm
Отзывов нет
