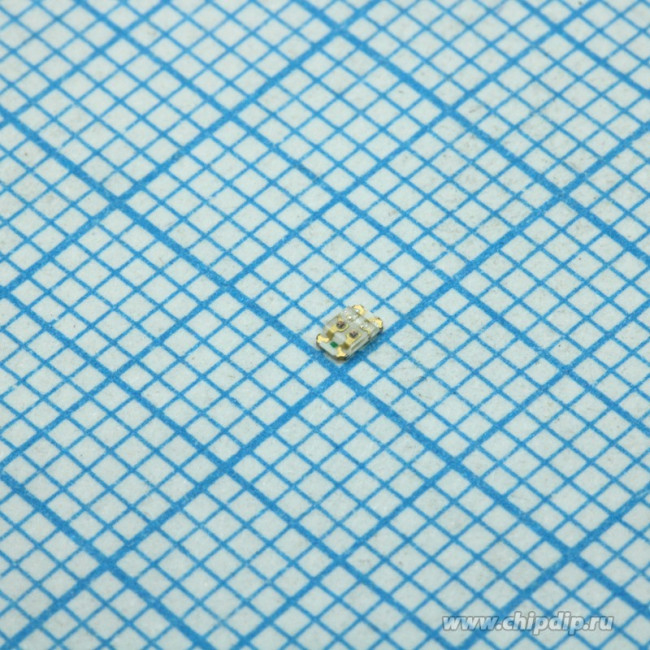

APHBM2012SURKCGKC, Standard LEDs - SMD Red/Green Dual Color
Оставить отзыв
В избранноеВ сравнение
Артикул: APHBM2012SURKCGKC
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Optoelectronics\LED Lighting\LED Emitters\Standard LEDs - SMD Описание Светодиод индикаторный
Основные | |
Производитель | Kingbright |
Бренд | Kingbright |
Информация о производителе | |
color | Green, Red |
configuration | Independent |
current - test | 20mA Green, 20mA Red |
Дата загрузки | 09.05.2024 |
eccn | EAR99 |
environmental information | http://www.kingbrightusa.com/webimages/certificate |
factory pack quantity: factory pack quantity: | 2000 |
height (max) | 0.45mm |
htsus | 8541.40.2000 |
if - forward current | 20 mA |
if - forward current: | 20 mA |
illumination color | Red, Green |
категория | Оптоэлектроника/Светодиоды видимого спектра |
кол-во в упаковке | 2000 |
Корпус | SMD4 |
length | 2 mm |
lens color | Colorless |
lens color/style | Water Clear |
lens dimensions | 1.3 mm x 1.25 |
lens dimensions: | 1.3 mm x 1.25 mm |
lens shape | Rectangular |
lens shape: | Rectangular |
lens size | 1.30mm x 1.25mm |
lens style | Rectangle with Flat Top |
lens transparency | Clear |
lens transparency: | Water Clear |
luminous intensity | 220 mcd, 80 mcd |
luminous intensity: | 220 mcd, 80 mcd |
manufacturer | Kingbright |
manufacturer: | Kingbright |
maximum operating temperature | +85 C |
maximum operating temperature: | +85 C |
millicandela rating | 50mcd Green, 80mcd Red |
minimum operating temperature | -40 C |
minimum operating temperature: | -40 C |
moisture sensitive: | Yes |
moisture sensitivity level (msl) | 3 (168 Hours) |
mounting style | SMD/SMT |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
orientation: | Top View |
package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
package / case | 0805 (2012 Metric) |
package / case: | 0805(2012 metric) |
packaging | Reel |
партномер | 8005046625 |
peak wavelength | 650 nm, 574 nm |
power rating: | 75 mW |
product: | Bi-Color LEDs |
product category | Standard LEDs-SMD |
product category: | Standard LEDs-SMD |
product type: | LED-Standard |
reach status | REACH Unaffected |
rohs | Details |
rohs status | ROHS3 Compliant |
size / dimension | 2.00mm L x 1.25mm W |
subcategory: | LEDs |
supplier device package | 2012(0805) |
type | Subminiature LED Lamps |
type: | Multi-Color LEDs |
вес, г | 0.056 |
vf - forward voltage | 1.95 V, 2.1 V |
vf - forward voltage: | 1.95 V, 2.1 V |
viewing angle | 120В° |
viewing angle: | 120 deg |
voltage - forward (vf) (typ) | 2.1V Green, 1.95V Red |
Время загрузки | 23:15:42 |
wavelength | 630 nm, 570 nm |
wavelength/color temperature | 630 nm, 570 nm |
wavelength - dominant | 570nm Green, 630nm Red |
wavelength - peak | 574nm Green, 645nm Red |
width | 1.25 mm |
