LXML-PM01-0090

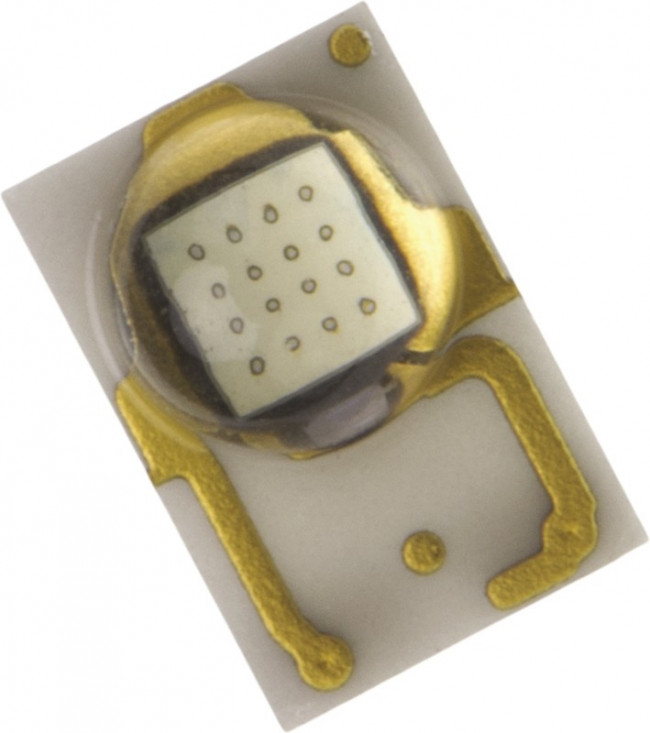

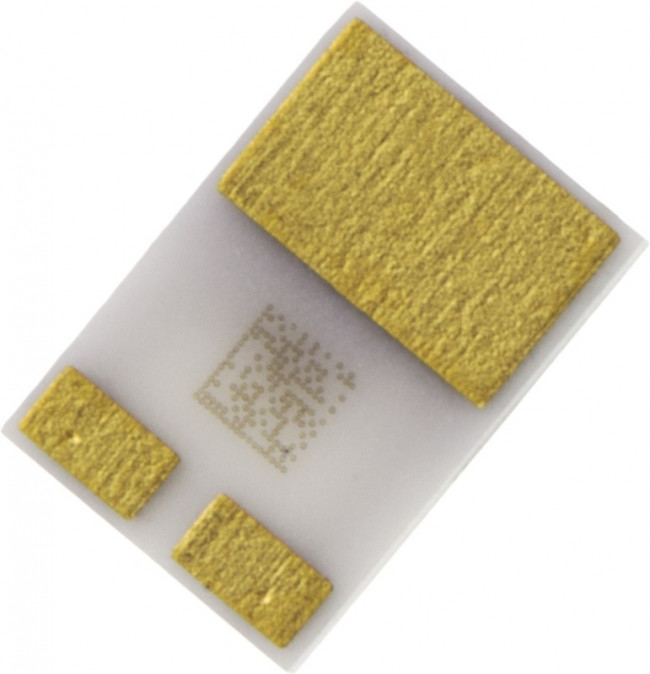

ЭлектроэлементREBEL GREEN 520NM - 550NM; COB Colour:Green; Color Rendering Index Max:-; Power Rating:95mW; Luminous Flux @ Test:90lm; Forward Current @ Test:350mA; Viewing Angle:125В°; Forward Voltage VF Typ:2.9V; Nominal CCT (K):-; COB Length:4.61mm; COB Width:3.17mm; Opto Case Style:1812; Lumens / Watt @ Current Test:93lm/W; Light Emitting Surface:-; Lens Type:Power LED Lens; Lens Shape:Dome; Height:2.1mm; Product Range:LUXEON Series; SVHC:No SVHC (07-Jul-2017); Forward Current If Max:1A; Forward Voltage:3.05V; Forward Voltage @ Test:3.25V; LED Colour:Green; LED Mounting:SMD; No. of Pins:3Pins; Operating Temperature Max:135В°C; Operating Temperature Min:-40В°C; Operating Temperature Range:-40В°C to +135В°C; Power @ Test:1.1W; Wavelength Typ:530nm
