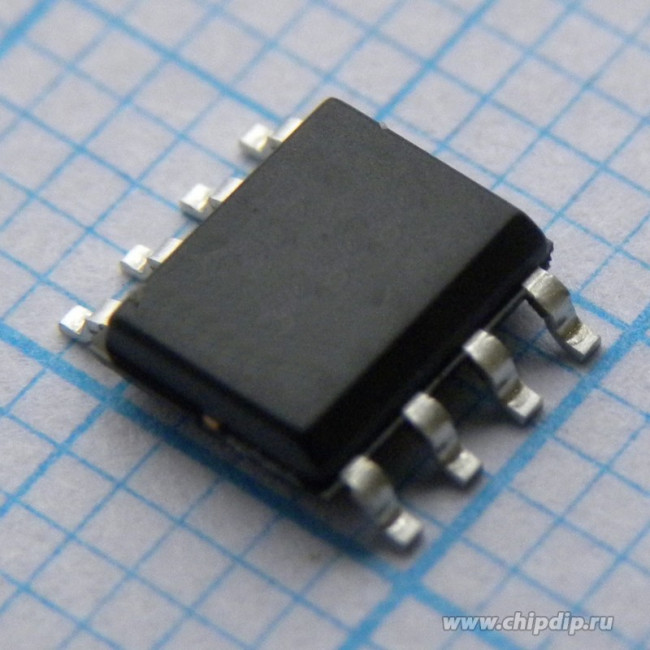

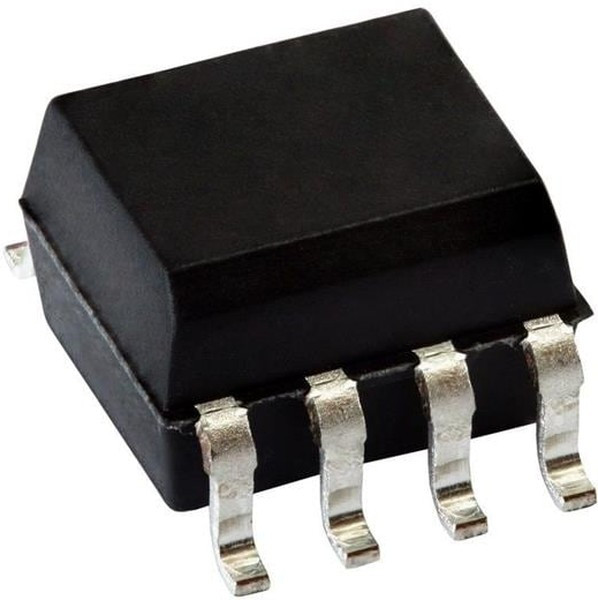

HCPL-0611-000E

ЭлектроэлементOPTOCOUPLER, SMD, LOGIC O/P; No. of Channels:1 Channel; Isolation Voltage:3.75kV; Data Rate:10Mbaud; Optocoupler Case Style:SOIC; No. of Pins:8Pins; Product Range:-; SVHC:No SVHC (12-Jan-2017); Approval Bodies:CSA, DIN, EN, IEC; CMR:10000V/µs; External Depth:3.2mm; External Length / Height:5.8mm; External Width:5.08mm; Fall Time tf:10ns; Input Current:15mA; Lead Spacing:1.27mm; No. of Channels:1Channels; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +85°C; Optocoupler Output Type:Logic Gate; Output Current:50mA; Output Voltage:7V; Peak Forward Current:20mA; Propagation Time H-L:48ns; Propagation Time L-H:50ns; Rise Time:24ns; Voltage Vcc Max:5.5V; Voltage Vcc Min:4.5V
