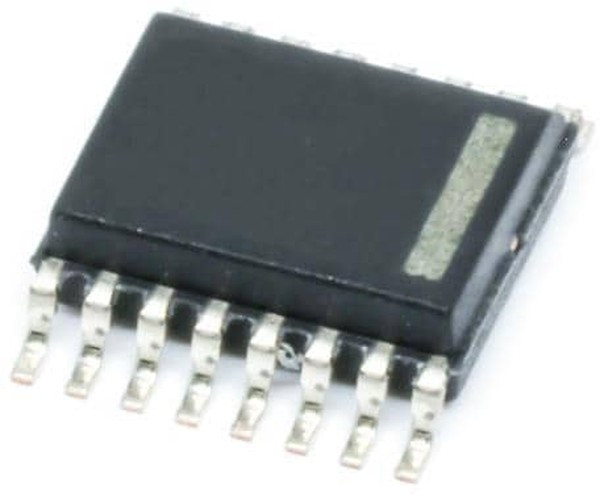

ISO7140CCDBQ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент1Kv Iso Data Coupler; Msl:Msl 2 - 1 Year; Svhc:No Svhc (15-Jan-2019) Rohs Compliant: Yes |TEXAS INSTRUMENTS ISO7140CCDBQ
| Основные | |
| Производитель | Texas Instruments |
| Бренд | Texas Instruments |
| Информация о производителе | |
| automotive | No |
| coupling type | Capacitive Coupling |
| data rate | 50 Mb/s |
| data rate: | 50 Mb/s |
| Дата загрузки | 09.03.2024 |
| eccn (us) | EAR99 |
| eu rohs | Compliant |
| factory pack quantity | 75 |
| factory pack quantity: factory pack quantity: | 150 |
| forward channels: | 4 Channel |
| forward/reverse channels | 4/0 |
| input type | CMOS, TTL |
| input type: | CMOS, TTL |
| isolation type | Capacitive Coupling |
| isolation type: | Capacitive Coupling |
| isolation voltage | 2.5 kV |
| isolation voltage: | 2500 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum data rate | 50Mbps |
| maximum esd protection voltage (kv) | ±1.5@CDM/±4@HBM/±0.2@MM |
| maximum fall time (ns) | 3(Typ) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 150 |
| maximum propagation delay time (tphl) (ns) | 50 |
| maximum propagation delay time (tplh) (ns) | 35 |
| maximum rise time (ns) | 3(Typ) |
| maximum working insulation voltage | 566Vp |
| minimum common mode rejection (kv/us) | 25 |
| minimum isolation voltage (vrms) | 2500 |
| minimum operating supply voltage (v) | 02.07.2024 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current | 15.6 mA |
| operating supply current: | 15.6 mA |
| operating supply voltage | 2.7 V to 5 V |
| operating supply voltage: | 2.7 V to 5 V |
| output type | Logic |
| package / case | SSOP-16 |
| package / case: | SSOP-16 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8002947759 |
| part status | Active |
| pcb changed | 16 |
| pd - power dissipation | 150 mW |
| pd - power dissipation: | 150 mW |
| pin count | 16 |
| polarity | Unidirectional |
| polarity: | Unidirectional |
| ppap | No |
| product | Digital Isolators |
| product category | Digital Isolators |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time | 23 ns |
| propagation delay time: | 23 ns |
| reverse channels: | 0 Channel |
| rohs | Details |
| series | ISO7140CC |
| series: | ISO7140CC |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| standard package name | SOP |
| subcategory: | Interface ICs |
| supplier package | SSOP |
| supply voltage - max | 5 V |
| supply voltage - max: | 5 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| type | Digital Isolator |
| typical operating supply voltage (v) | 3.3|5 |
| unit weight | 0.004586 oz |
| вес, г | 0.4 |
| Время загрузки | 22:01:47 |
