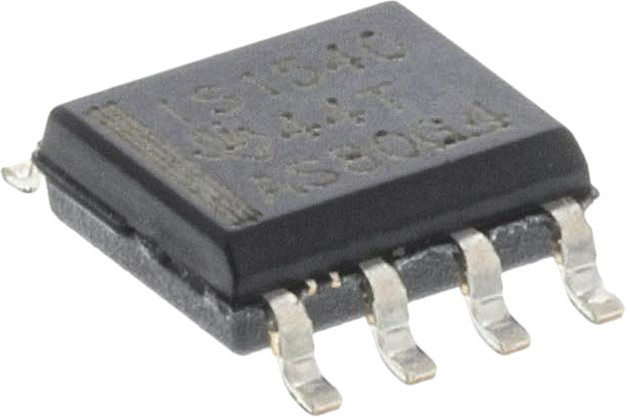

ISO1540D
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Электроэлемент2.5-kVrms, isolated bidirectional clock, bidirectional I2C isolator 8-SOIC -40 to 125
| Основные | |
| Производитель | Texas Instruments |
| Бренд | Texas Instruments |
| Информация о производителе | |
| automotive | No |
| coupling type | Capacitive Coupling |
| data rate | 1 Mb/s |
| data rate: | 1 Mb/s |
| Дата загрузки | 09.03.2024 |
| development kit | ISO154XEVM |
| development kit: | ISO154XEVM |
| eccn (us) | EAR99 |
| eu rohs | Compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 150 |
| forward/reverse channels | 02.02.2024 |
| isolation type | Capacitive Coupling |
| isolation type: | Capacitive Coupling |
| isolation voltage | 2.5 kVrms |
| isolation voltage: | 2500 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum data rate | 1Mbps |
| maximum esd protection voltage (kv) | 1.5@CDM/4@HBM/0.2@MM |
| maximum fall time (ns) | 100 |
| maximum input current | 303 mA |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum output current drive (ma) | 100 |
| maximum propagation delay time (tphl) (ns) | 181 |
| maximum propagation delay time (tplh) (ns) | 65 |
| maximum working insulation voltage | 566Vp |
| minimum common mode rejection (kv/us) | 25 |
| minimum isolation voltage (vrms) | 2500 |
| minimum operating supply voltage (v) | 3 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| number of pins | 8 |
| operating supply current | 3.6 mA |
| operating supply current: | 2.5 mA, 3.1 mA |
| operating supply voltage | 3 V to 5.5 V |
| operating supply voltage: | 3 V to 5.5 V |
| output type | Open Drain |
| package / case | SOIC-8 |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Reel |
| packaging: | Tube |
| партномер | 8002953890 |
| part # aliases | HPA02222DR |
| part status | Active |
| pcb changed | 8 |
| pin count | 8 |
| polarity | Bidirectional |
| polarity: | Bidirectional |
| ppap | No |
| product category | Digital Isolators |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time: | 70 ns |
| protocol supported | I2C |
| protocol supported: | I2C |
| rohs | Details |
| series | ISO1540 |
| series: | ISO1540 |
| standard package name | SO |
| subcategory: | Interface ICs |
| supplier package | SOIC |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V |
| type | I2C |
| type: | I2C Isolator |
| typical operating supply voltage (v) | 3.3|5 |
| unit weight | 0.019048 oz |
| вес, г | 1.134 |
| Время загрузки | 20:23:10 |
| width | 367mm |
Отзывов нет
