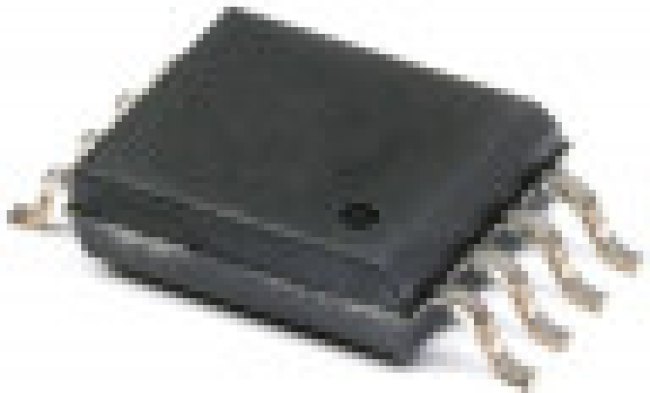

ADUM6028-3BRIZ, Цифровой изолятор, 1 канал, 3 В, 3.6 В, WSOIC, 8 вывод(-ов)

Полупроводники - Микросхемы\Драйверы и Интерфейсы\ИзоляторыADUM6028 is an isoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler® technology, this dc-to-dc converter provide regulated, isolated power that is below CISPR22 Class B limits at full load on a 2‑layer printed circuit board (PCB) with ferrites. This device eliminate the need to design and build isolated dc-to-dc converters in applications upto 500mW. The iCoupler chip scale transformer technology is used for the magnetic components of the dc-to-dc converter. The result is a small form factor, isolated solution. It is approved by UL recognition 5000V rms for 1 minute per UL 1577, CSA component acceptance notice 5A, VDE certificate of conformity, VDE V 0884-10, VIORM = 565V peak, CQC certification per GB4943.1-2011. It is widely used in application such as RS-485/RS-422/CAN transceiver power, power supply start-up bias and gate drives, isolated sensor interfaces, automotive on-board charger (OBC) and dc to dc, industrial PLCs etc. • Output supply current is 60mA minimum• Output noise is 200mV p-p typical• Switching frequency is 180MHz typical• Line regulation is 2mV/V typical• Load regulation is 1% typical• Output ripple is 75mV p-p typical• Operating voltage range is 3V to 3.6V• Operating temperature is -40°C to +125°C• Package style is 16-lead standard small outline package, with increased creepage [SOIC-IC]
