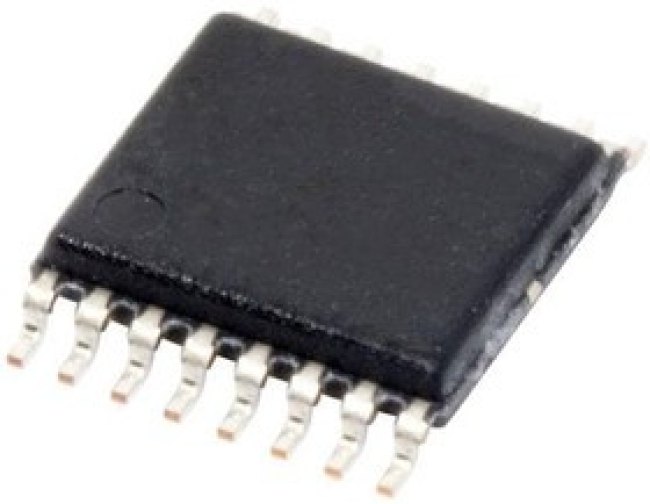

ADUM4224WARWZ, Galvanically Isolated Gate Drivers 5kV rms Isolated Precision Half-Bridge Driver, 4A Output for Automotive
Оставить отзыв
В избранноеВ сравнение
Артикул: ADUM4224WARWZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Power Management ICs\Gate DriversADI Isolation - Power Conversion
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | Yes |
| bridge type | Half Bridge |
| Дата загрузки | 09.03.2024 |
| driver type | High and Low Side|Isolated Gate Driver |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 47 |
| fall time: | 12 ns |
| high and low sides dependency | Independent |
| input logic compatibility | CMOS|3.3V|5V |
| isolation voltage: | 3 kVrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| latch-up proof | No |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| maximum fall time (ns) | 12(Typ) |
| maximum operating frequency (khz) | 1000(Min) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 2770 |
| maximum propagation delay time (ns) | 47(Typ) |
| maximum rise time (ns) | 12(Typ) |
| maximum supply current (ma) | 5.6(Typ) |
| minimum operating supply voltage (v) | 3 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of drivers | 2 |
| number of drivers: | 2 Driver |
| number of outputs | 2 |
| number of outputs: | 2 Output |
| operating supply current: | 1.4 mA |
| output current: | 4 A |
| package / case: | SOIC-16 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004601895 |
| part status | active |
| pcb changed | 16 |
| pd - power dissipation: | 1.64 W |
| peak output current (a) | 4 |
| pin count | 16 |
| ppap | Unknown |
| product: | Isolated Gate Drivers |
| product category: | Gate Drivers |
| product type: | Gate Drivers |
| qualification: | AEC-Q100 |
| rise time: | 12 ns |
| series: | ADUM4224 |
| special features | Under Voltage Lockout |
| standard package name | SO |
| subcategory: | PMIC-Power Management ICs |
| supplier package | SOIC W |
| supplier temperature grade | Automotive |
| supply voltage - max: | 18 V |
| supply voltage - min: | 3 V |
| technology: | Si |
| type | IGBT|MOSFET |
| type: | Half-Bridge |
| typical input high threshold voltage (v) | 2.1(Min) |
| typical input low threshold voltage (v) | 1.65(Max) |
| вес, г | 0.67 |
| Время загрузки | 21:52:00 |
