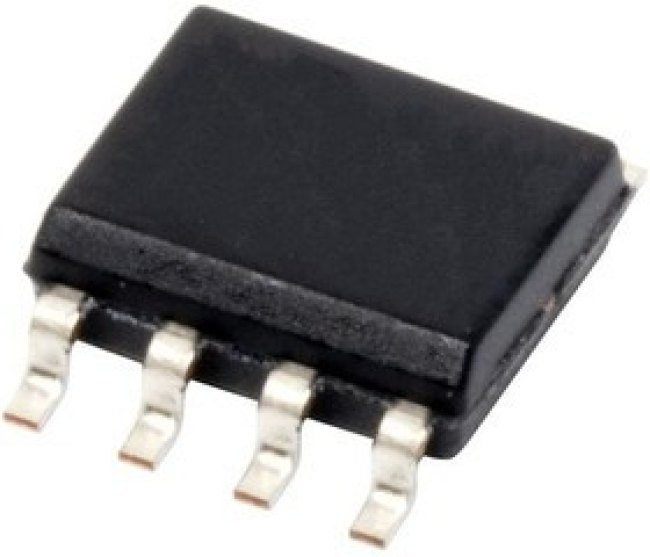

ADUM3201BRZ, Digital Isolators Dual-Channel, Digital Isolator, Enhanced System-Level ESD Reliability
Оставить отзыв
В избранноеВ сравнение
Артикул: ADUM3201BRZ
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Interface ICs\Digital IsolatorsAnalog Devices Isolation - All
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | No |
| category | Isolators |
| channel type | Unidirectional |
| common mode transient immunity (min) | 25kV/µs |
| coupling type | Magnetic Coupling |
| data rate | 10Mbps |
| data rate: | 10 Mb/s |
| Дата загрузки | 09.03.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 98 |
| family | Digital Isolators |
| forward/reverse channels | 01.01.2024 |
| inputs - side 1/side 2 | 01.01.2024 |
| isolated power | No |
| isolation type: | Magnetic Coupling |
| isolation voltage: | 2500 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| maximum data rate | 10Mbps |
| maximum fall time (ns) | 2.5(Typ) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 105 |
| maximum propagation delay skew (ns) | 15 |
| maximum propagation delay time (tphl) (ns) | 50 |
| maximum propagation delay time (tplh) (ns) | 50 |
| maximum quiescent supply current (ma) | 04.02.2004 |
| maximum rise time (ns) | 2.5(Typ) |
| maximum working insulation voltage | 560Vp |
| minimum common mode rejection (kv/us) | 25 |
| minimum isolation voltage (vrms) | 2500 |
| minimum operating supply voltage (v) | 3 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels | 2 |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| online catalog | ADuM3200, 01 Series |
| operating supply current: | 3.1 mA |
| operating supply voltage: | 5.5 V |
| operating temperature | -40°C ~ 105°C |
| other names | ADUM3201BRZ-RL7CT |
| output type | CMOS |
| package / case | 8-SOIC(0.154", 3.90mm Width) |
| package / case: | SOIC-8 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004971411 |
| part status | active |
| pcb changed | 8 |
| pcn design/specification | ADUM3201 Die/Datasheet Update 06/Oct/2014 |
| pin count | 8 |
| polarity: | Unidirectional |
| ppap | No |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time: | 50 ns |
| propagation delay tplh / tphl (max) | 50ns, 50ns |
| pulse width distortion (max) | 3ns |
| rise / fall time (typ) | 2.5ns, 2.5ns |
| series | iCoupler® |
| series: | ADUM3201 |
| standard package | 1 |
| standard package name | SO |
| subcategory: | Interface ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC N |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 3 V |
| technology | Magnetic Coupling |
| type | General Purpose |
| type: | General Purpose |
| вес, г | 0.15 |
| video file | iCoupler Digital Isolators Meet Strict HEV/EV RequirementsezLINX™ iCoupler® Isolated Interface Development EnvironmentiCoupler® Digital Isolators in Motor Control Designs |
| voltage - isolation | 2500Vrms |
| voltage - supply | 2.7 V ~ 5.5 V |
| Время загрузки | 21:55:57 |
