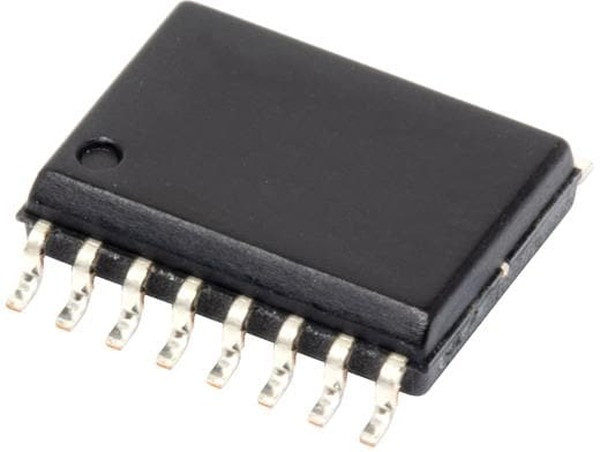

ADUM260N0BRIZ-RL
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Analog Devices Isolation - All
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | No |
| coupling type | Magnetic Coupling |
| data rate: | 150 Mb/s |
| Дата загрузки | 09.03.2024 |
| eccn (us) | EAR99 |
| eu rohs | Compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| forward channels: | 6 Channel |
| forward/reverse channels | 6/0 |
| isolation type: | Magnetic Coupling |
| isolation voltage: | 5000 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| maximum data rate | 150Mbps(Min) |
| maximum fall time: | 1 ms |
| maximum fall time (ns) | 2.5(Typ) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum output current drive (ma) | 10 |
| maximum power dissipation (mw) | 2780 |
| maximum propagation delay skew (ns) | 06.01.2024 |
| maximum propagation delay time (tphl) (ns) | 13 |
| maximum propagation delay time (tplh) (ns) | 13 |
| maximum quiescent supply current (ma) | 30 |
| maximum rise time: | 1 ms |
| maximum rise time (ns) | 2.5(Typ) |
| maximum working insulation voltage | 849Vp |
| minimum common mode rejection (kv/us) | 75 |
| minimum isolation voltage (vrms) | 5000 |
| minimum operating supply voltage (v) | 01.07.2024 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | Surface Mount |
| mounting style: | SMD/SMT |
| number of channels: | 6 Channel |
| number of channels per chip | 6 |
| operating supply current: | 18.3 mA |
| output type | CMOS |
| package / case: | SOIC-16 |
| packaging | Tape and Reel |
| packaging: | Reel, Cut Tape |
| партномер | 8022870215 |
| part status | Active |
| pcb changed | 16 |
| pd - power dissipation: | 2.78 W |
| pin count | 16 |
| polarity: | Unidirectional |
| ppap | No |
| process technology | iCoupler |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time: | 7.2 ns |
| pulse width distortion: | 500 ps |
| reverse channels: | 0 Channel |
| series: | ADUM260N |
| shutdown: | No Shutdown |
| standard package name | SO |
| subcategory: | Interface ICs |
| supplier package | SOIC W |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.7 V |
| type | SPI |
| typical operating supply voltage (v) | 1.8|2.5|3.3|5 |
| Время загрузки | 20:18:43 |
