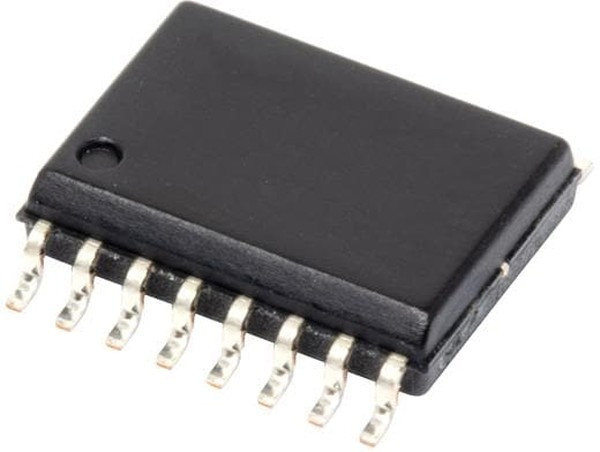

ADUM2285ARIZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Isolators\Digital IsolatorsGeneral Purpose Digital Isolator 5000Vrms 2 Channel 1Mbps 25kV/Вµs CMTI 16-SOIC (0.295", 7.50mm Width)
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | No |
| base product number | ADUM2285 -> |
| channel type | Unidirectional |
| common mode transient immunity (min) | 25kV/Вµs |
| coupling type | Magnetic Coupling |
| data rate | 1Mbps |
| data rate: | 1 Mb/s |
| Дата загрузки | 09.03.2024 |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 37 |
| forward/reverse channels | 2/0 |
| htsus | 8542.39.0001 |
| inputs - side 1/side 2 | 2/0 |
| isolated power | No |
| isolation type: | Magnetic Coupling |
| isolation voltage: | 5000 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer: | Analog Devices Inc. |
| maximum data rate | 1Mbps |
| maximum fall time (ns) | 2.5(Typ) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum propagation delay skew (ns) | 38 |
| maximum propagation delay time (tphl) (ns) | 50 |
| maximum propagation delay time (tplh) (ns) | 50 |
| maximum quiescent supply current (ma) | 1.6/4.5 |
| maximum rise time (ns) | 2.5(Typ) |
| maximum working insulation voltage | 846Vp |
| minimum common mode rejection (kv/us) | 25 |
| minimum isolation voltage (vrms) | 5000 |
| minimum operating supply voltage (v) | 02.07.2024 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 1.3 mA, 2.7 mA |
| operating supply voltage: | 5.5 V |
| operating temperature | -40В°C ~ 125В°C |
| output type | CMOS |
| package | Tube |
| package / case | 16-SOIC (0.295"", 7.50mm Width) |
| package / case: | SOIC-16 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8006148115 |
| part status | active |
| pcb changed | 16 |
| pin count | 16 |
| polarity: | Unidirectional |
| ppap | No |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time: | 50 ns |
| propagation delay tplh / tphl (max) | 50ns, 50ns |
| pulse width distortion (max) | 10ns |
| reach status | REACH Unaffected |
| rise / fall time (typ) | 2.5ns, 2.5ns |
| rohs status | ROHS3 Compliant |
| series | iCouplerВ® -> |
| series: | ADUM2285 |
| standard package name | SO |
| subcategory: | Interface ICs |
| supplier device package | 16-SOIC-IC |
| supplier package | SOIC W |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.7 V |
| technology | Magnetic Coupling |
| type | General Purpose |
| type: | General Purpose |
| voltage - isolation | 5000Vrms |
| voltage - supply | 2.7V ~ 5.5V |
| Время загрузки | 22:01:00 |
