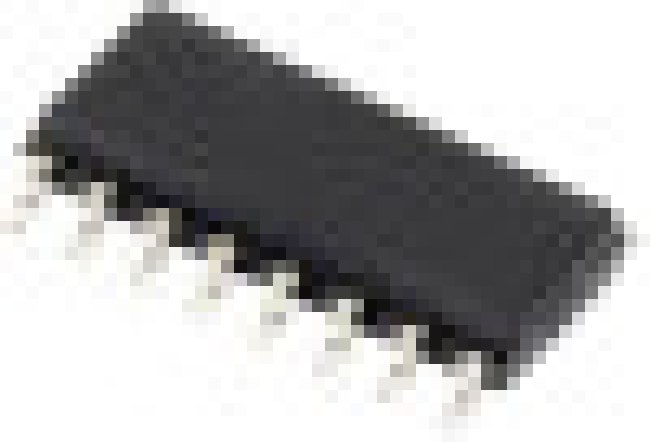

ADUM141E0BRZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементУстойчивый к внешним воздействиям четырехканальный цифровой изолятор с разрешением выхода и 1 обратным каналом
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | No |
| coupling type | Magnetic Coupling |
| data rate | 150 Mb/s |
| data rate: | 150 Mb/s |
| Дата загрузки | 09.03.2024 |
| development kit | EVAL-3CH4CHEBZ |
| development kit: | EVAL-3CH4CHEBZ |
| duplex | - |
| eccn (us) | EAR99 |
| eu rohs | Compliant |
| factory pack quantity | 48 |
| factory pack quantity: factory pack quantity: | 48 |
| forward channels: | 3 Channel |
| forward/reverse channels | 03.01.2024 |
| isolation type | Magnetic Coupling |
| isolation type: | Magnetic Coupling |
| isolation voltage | 3 kVrms |
| isolation voltage: | 3000 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| maximum data rate | 150Mbps(Min) |
| maximum fall time: | 2.5 ns |
| maximum fall time (ns) | 2.5(Typ) |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 1640 |
| maximum propagation delay skew (ns) | 06.01.2024 |
| maximum propagation delay time (tphl) (ns) | 15 |
| maximum propagation delay time (tplh) (ns) | 15 |
| maximum quiescent supply current (ma) | 17.10.2024 |
| maximum rise time: | 2.5 ns |
| maximum rise time (ns) | 2.5(Typ) |
| maximum working insulation voltage | 565Vp |
| minimum common mode rejection (kv/us) | 75 |
| minimum isolation voltage (vrms) | 3000 |
| minimum operating supply voltage (v) | 01.07.2024 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive | Yes |
| moisture sensitive: | Yes |
| mounting | Surface Mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 3 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current | 10.3 mA, 11.4 mA |
| operating supply current: | 11.4 mA |
| output type | CMOS |
| package / case | SOIC-16 |
| package / case: | SOIC-16 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8009907735 |
| part status | Active |
| pcb changed | 16 |
| pd - power dissipation | 1.64 W |
| pd - power dissipation: | 1.64 W |
| pin count | 16 |
| polarity | Unidirectional |
| polarity: | Unidirectional |
| ppap | No |
| product | Digital Isolators |
| product category | Digital Isolators |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time | 7.2 ns |
| propagation delay time: | 15 ns |
| protocol supported | SPI |
| protocol supported: | SPI |
| pulse width distortion: | 0.5 ns |
| reverse channels: | 1 Channel |
| rohs | Details |
| series | ADUM141E |
| series: | ADUM141ES |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| standard package name | SO |
| subcategory: | Interface ICs |
| supplier package | SOIC N |
| supply voltage - max | 5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 1.8 V |
| supply voltage - min: | 1.7 V |
| type | General Purpose |
| type: | General Purpose |
| typical operating supply voltage (v) | 2.5|3.3|5 |
| unit weight | 0.023492 oz |
| Время загрузки | 21:54:48 |
