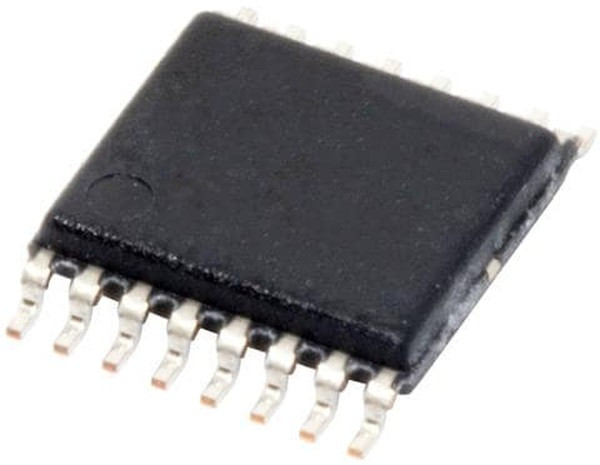

ADUM1402WSRWZ-RL, Цифровой изолятор, 4 канала, 70 нс, 2.7 В, 5.5 В, WSOIC, 16 вывод(-ов)

Полупроводники - Микросхемы\Драйверы и Интерфейсы\ИзоляторыADUM1402 is a quad-channel digital isolator. It is based on Analog Devices, Inc., icoupler® technology. This isolator component provide outstanding performance characteristics superior to alternatives, such as optocoupler device. This isolator provide four independent isolation channels in a variety of channel configurations and data rates. It is mainly used in application such as general-purpose multichannel isolation, SPI interface and data converter isolation, RS-232/RS-422/RS-485 transceivers, industrial field bus isolation, automotive systems. This isolator is approved by UL recognition: 2500V rms for 1 minute per UL 1577, CSA component acceptance notice 5A, VDE certificate of conformity, DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12, VIORM = 560V peak, TÜV approval: IEC/EN/UL/CSA 61010-1.• Made of high speed CMOS and monolithic air core transformer technology• Qualified for automotive applications• Low power operation, bidirectional communication• 3V/5V level translation, high temperature operation is 125°C• Output enable function, high common-mode transient immunity is >25kV/µs• Number of inputs in VDD1 side is 2, number of inputs in VDD2 side is 2• Maximum data rate is 1Mbps, operating temperature range is -40°C to +125°C• Maximum propagation delay is 100ns (at 5V)• Maximum pulse width distortion is 40ns• Packaging style is 16-lead WSOIC
