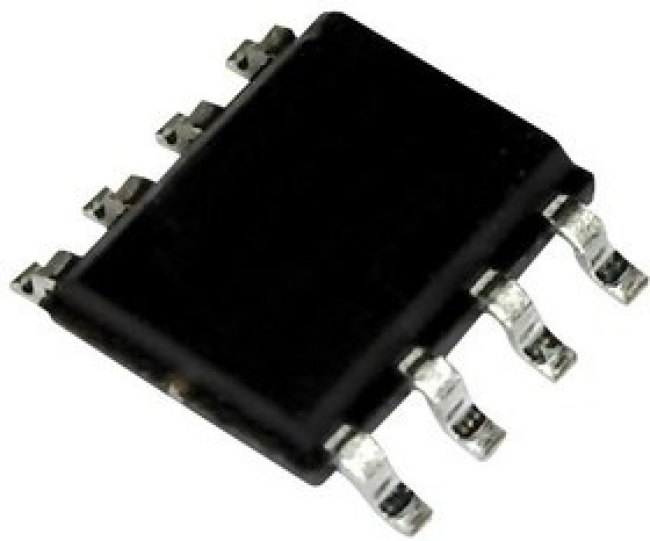

ADUM1285BRZ, Цифровой изолятор, 2 канала, 35 нс, 3.135 В, 5.5 В, NSOIC, 8 вывод(-ов)

Полупроводники - Микросхемы\Драйверы и Интерфейсы\ИзоляторыADUM1285 is a dual channel digital isolator. This isolator is based on Analog device, Inc., icoupler® technology. It provides outstanding performance characteristics superior to alternatives, such as optocoupler devices and other integrated couplers. This isolator also provide lower voltage system which enables a voltage translation functionality across the isolation barrier. This isolator is widely used in application such as general-purpose multichannel isolation, data converter isolation, industrial field bus isolation, hybrid electric vehicles, battery monitor, and motor drive. It is approved by UL recognition: 3000V rms for 1minute per UL 1577, CSA component acceptance notice 5A, VDE certificate of conformity, DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12. • Number of inputs on VDD1 side is 2, number of inputs on VDD2 side is 0• Maximum data rate is 25Mbps• Maximum propagation delay is 35ns (at 5V)• Output default state is low• Operating temperature range is -40°C to +125°C• Package style is 8-lead SOIC• N• Operating voltage range is 3.135V to 5.5V• Low dynamic power consumption, bidirectional communication• High speed CMOS and monolithic air core transformer technology
