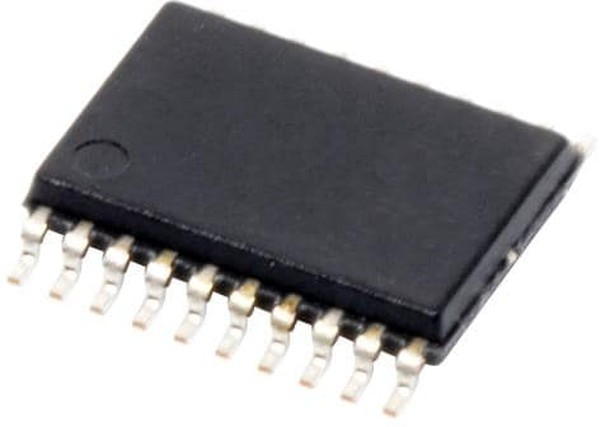

ADM3260ARSZ
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Analog Devices Isolation - All
| Основные | |
| Производитель | Analog Devices |
| Бренд | Analog Devices |
| Информация о производителе | |
| automotive | No |
| coupling type | Magnetic Coupling |
| data rate | 1 Mb/s |
| data rate: | 1 Mb/s |
| Дата загрузки | 09.03.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 66 |
| factory pack quantity: factory pack quantity: | 66 |
| forward channels: | 1 Channel |
| forward/reverse channels | 02.02.2024 |
| isolation type | Magnetic Coupling |
| isolation type: | Magnetic Coupling |
| isolation voltage | 2.5 kVrms |
| isolation voltage: | 2500 Vrms |
| категория | Электронные компоненты/Оптопары и изоляторы |
| lead shape | Gull-wing |
| manufacturer | Analog Devices Inc. |
| manufacturer: | Analog Devices Inc. |
| maximum fall time (ns) | 120 |
| maximum operating supply voltage (v) | 05.05.2024 |
| maximum operating temperature | +105 C |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum power dissipation (mw) | 150 |
| maximum propagation delay time (tphl) (ns) | 275 |
| maximum propagation delay time (tplh) (ns) | 130 |
| maximum working insulation voltage | 560Vp |
| minimum common mode rejection (kv/us) | 25 |
| minimum isolation voltage (vrms) | 2500 |
| minimum operating supply voltage (v) | 3 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current | 2.8 mA |
| operating supply current: | 5 mA |
| package / case | SSOP-20 |
| package / case: | SSOP-20 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8022657333 |
| part status | active |
| pcb changed | 20 |
| pd - power dissipation | 2.5 W |
| pd - power dissipation: | 2.5 W |
| pin count | 20 |
| polarity | Bidirectional |
| polarity: | Bidirectional |
| ppap | No |
| process technology | CMOS |
| product category | Digital Isolators |
| product category: | Digital Isolators |
| product type: | Digital Isolators |
| propagation delay time | 95 ns |
| propagation delay time: | 340 ns |
| protocol supported | I2C |
| protocol supported: | I2C |
| reverse channels: | 1 Channel |
| rohs | Details |
| series | ADM3260 |
| series: | ADM3260 |
| standard package name | SOP |
| subcategory: | Interface ICs |
| supplier package | SSOP |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 3 V |
| supply voltage - min: | 3 V |
| type | I2C |
| type: | I2C Isolator |
| typical operating supply voltage (v) | 5|3.3 |
| Время загрузки | 20:19:45 |
