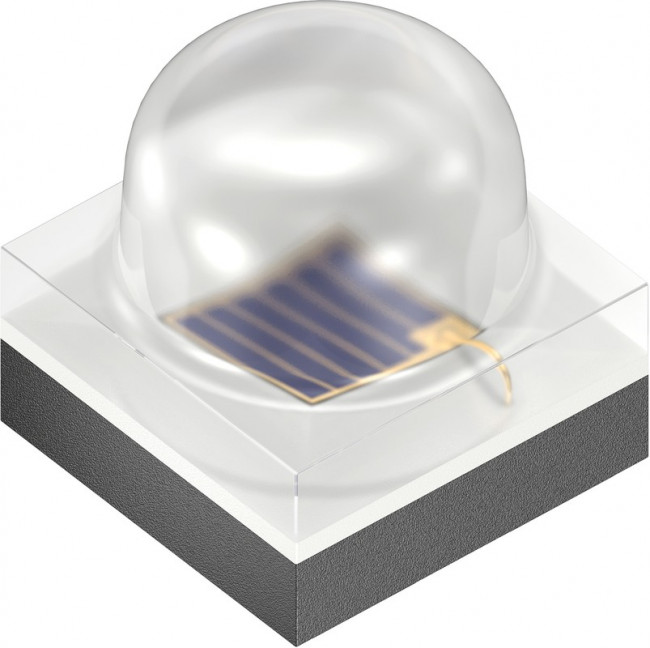

SFH 4171S, ИК излучатель, 850 нм, 35 °, SMD, 680 мВт/ср, 9 нс, 16 нс

Оптоэлектроника и Дисплеи\ИК Продукты\ИК Излучатели (Эмиттеры)• Clear silicone package, corrosion robustness class: 3B• Nanostack technology for higher output (increased output by almost 100%)• ESD: 2KV according to ANSI/ESDA/JEDEC JS-001 (HBM)• IR light source with high efficiency, double stack emitter• Ultra small package with only 1.60 x 1.60 x 1.71mm³ enabling use in space critical applications• Centroid wavelength of 850nm• 560 to 900mW/sr radiant intensity range (IF = 1A; tp = 10ms Ie)• 680mW/sr radiant intensity (IF = 1A; tp = 10ms Ie)• Operating temperature range from -40°C to 105°C• Superior package size to performance ratio with 450mW /mm² (1150mW out of 1.6 x 1.6mm²)
