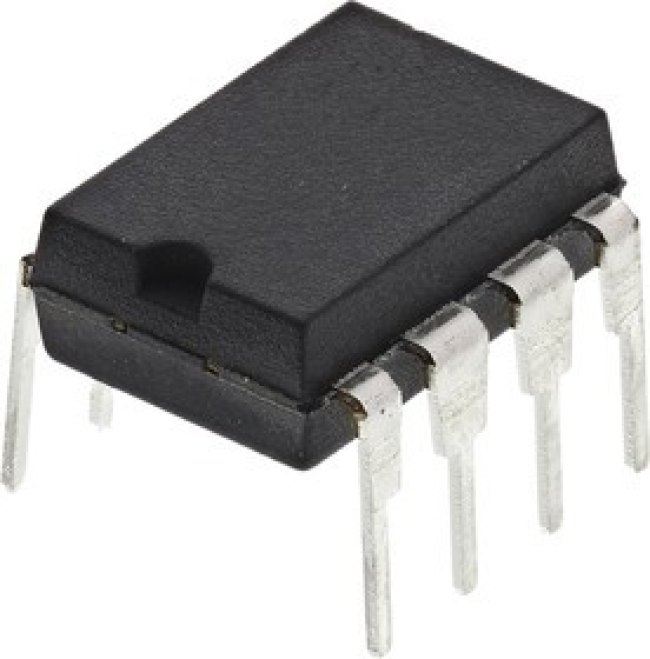

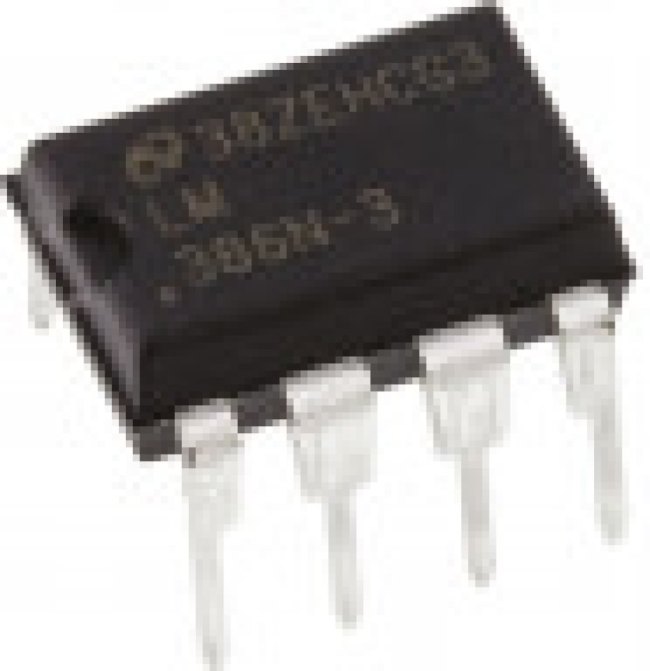

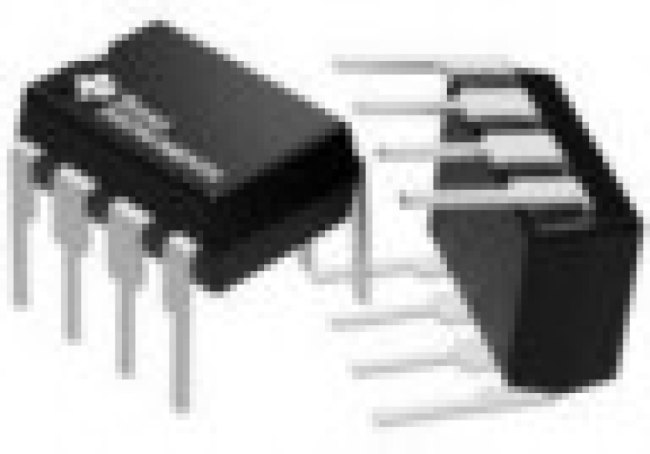

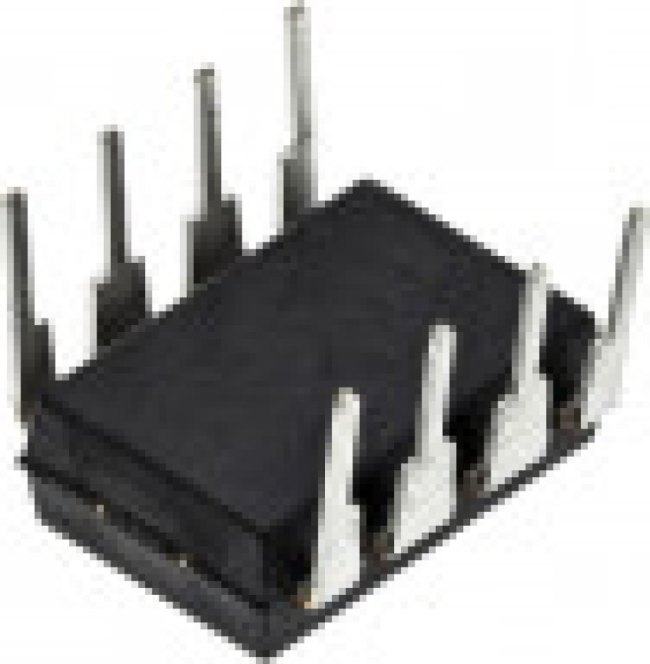

Name: LM386N-3/NOPB, Audio Amplifiers Lo Vtg Audio Pwr Amp
Brand: Texas Instruments
SKU: LM386N-3/NOPB

Электронные компоненты Микросхемы Усилители низкой частоты Texas Instruments LM386N-3/NOPB, Audio Amplifiers Lo Vtg Audio ...

Подробное описание

310 ₽

- +

Бонус: 6.2 !

Бонусная программа

Итого: 310 ₽

Купить

A range of single channel power amplifier ICs from Texas Instruments with power outputs from less than 1 watt to over 50 watts.

Информация о производителе
Производитель	Texas Instruments
Основные
Дата загрузки	28.05.2024
Время загрузки	15:13:11
Бренд	Texas Instruments
Вес и габариты
amplifier type	Audio Power Amplifier
application	Speaker
automotive	No
eccn (us)	ear99
eu rohs	compliant
function	Speaker
input signal type	Single Ended
категория	Электронные компоненты/Микросхемы
lead shape	Through Hole
maximum input bias current (ua)	0.25(Typ)@6V
maximum input bias current - (ua)	0.25(Typ)@6V
maximum operating temperature	+70 °C
maximum operating temperature (°c)	70
maximum power dissipation (mw)	1250
maximum power dissipation - (mw)	1250
maximum quiescent current (ma)	8@6V
maximum single supply voltage (v)	12
military	No
minimum load resistance (ohm)	8
minimum operating temperature	0 °C
minimum operating temperature (°c)	0
minimum single supply voltage (v)	4
mounting	Through Hole
mounting type	Through Hole
number of channels per chip	1
operating temperature - (??c)	0~70
output signal type	Single Ended
output type	1 Channel Mono
package type	MDIP
packaging	Tube
партномер	8006228330
part status	active
pcb changed	8
pin count	8
power supply type	Single
ppap	No
standard package name	DIP
supplier package	PDIP
thdn	0.2%@8Ohm@125mW
typical gain bandwidth product	300kHz
typical output power x channels @ load (w)	0.7x1@8Ohm
typical single supply voltage	5 V, 9 V
typical single supply voltage (v)	5\|9
вес, г	0.6
