| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:14:44 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type: | CMOS |
| automotive | No |
| cmrr - common mode rejection ratio: | 136 dB |
| диапазон напряжения питания | 2.2В до 5.5В |
| eccn (us) | ear99 |
| en - input voltage noise density: | 37 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 3 MHz |
| ib - input bias current: | 200 pA |
| input type: | Rail-to-Rail |
| ios - input offset current: | 400 pA |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 1 Усилитель |
| количество выводов | 5вывод(-ов) |
| lead shape | Gull-wing |
| максимальная рабочая температура | 125°C |
| manufacturer: | STMicroelectronics |
| manufacturer type | Zero Drift Amplifier |
| maximum input bias current (ua) | 0.0002@5V |
| maximum input offset current (ua) | 0.0004@5V |
| maximum input offset voltage (mv) | 0.025@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| maximum supply current (ma) | 1@5V |
| минимальная рабочая температура | -40°C |
| minimum cmrr (db) | 108 |
| minimum cmrr range (db) | 105 to 115 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.02.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 800 uA |
| output current per channel: | 25 mA, 29 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |

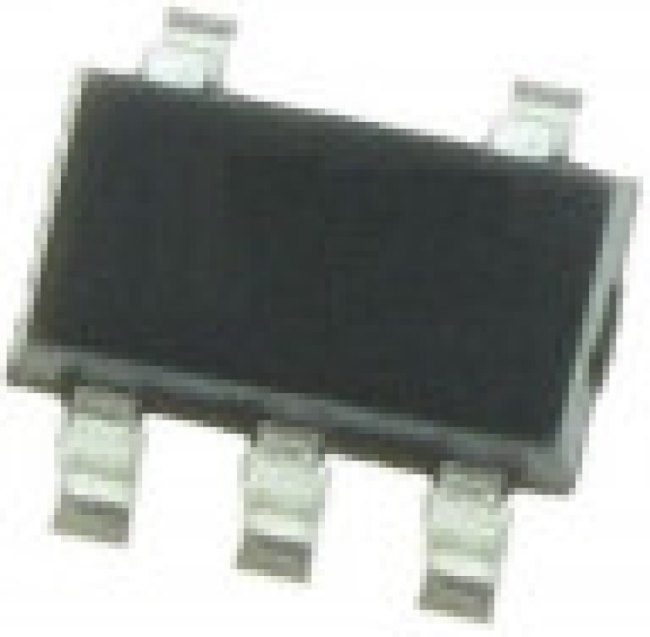

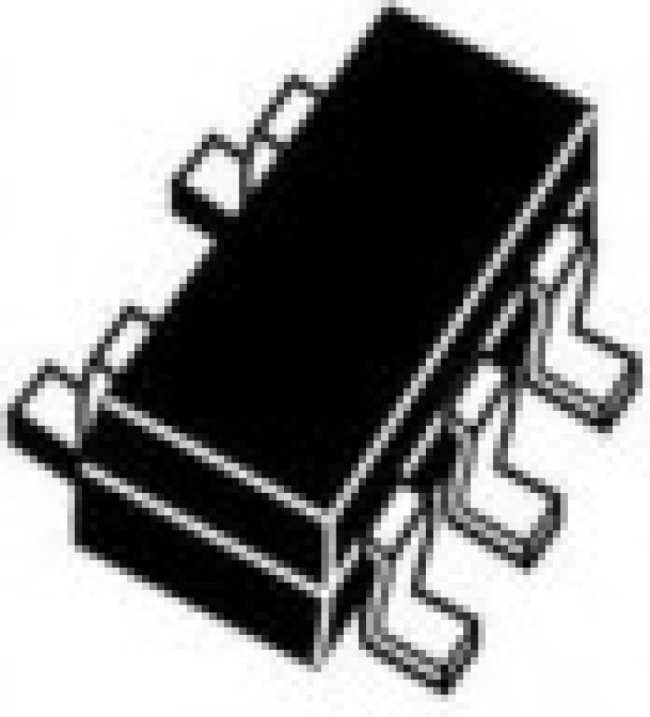

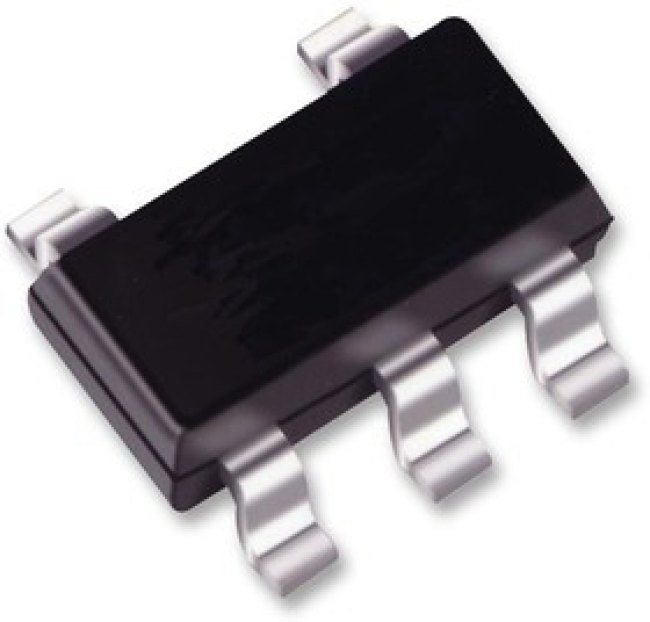

| package / case: | SOT-23-5 |
| packaging | Tape and Reel |
| партномер | 8004132013 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| полоса пропускания | 3МГц |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| psrr - power supply rejection ratio: | 123 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | TSZ181 |
| settling time: | 600 ns |
| shutdown: | No Shutdown |
| shut down support | No |
| скорость нарастания | 4.7В/мкс |
| sr - slew rate: | 4.7 V/us |
| standard package name | SOT |
| стиль корпуса усилителя | SOT-23 |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Extended |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 2.2 V |
| type | CHOPPER AMPLIFIER |
| typical gain bandwidth product (mhz) | 3 |
| typical input bias current (ua) | 0.00003@5V |
| typical input noise voltage density (nv/rthz) | 37@5V |
| typical output current (ma) | 29@5V |
| typical settling time (ns) | 600@5V |
| typical slew rate (v/us) | 4.7@5V |
| typical voltage gain (db) | 144 |
| уровень чувствительности к влажности (msl) | MSL 1-Безлимитный |
| вес, г | 0.02 |
| voltage gain db: | 144 dB |
| vos - input offset voltage: | 25 uV |
