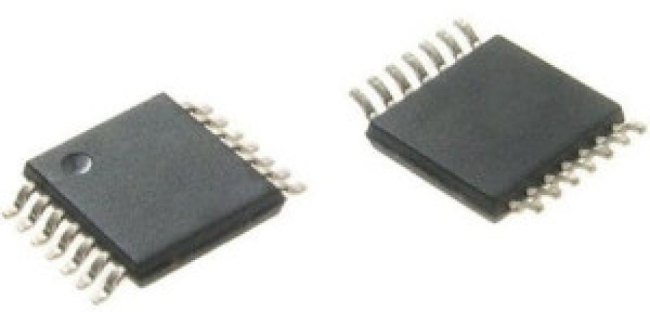

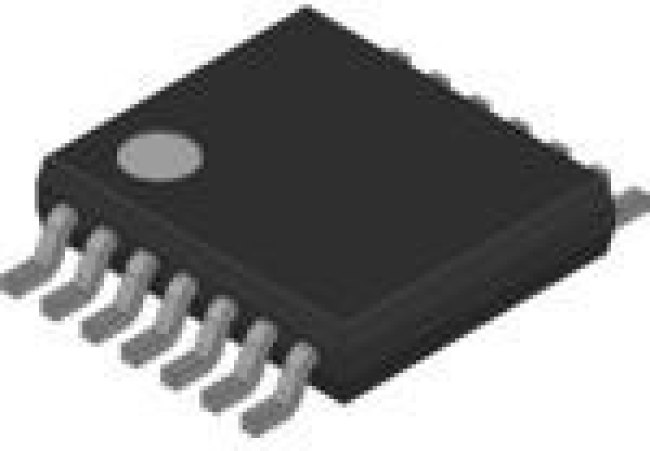

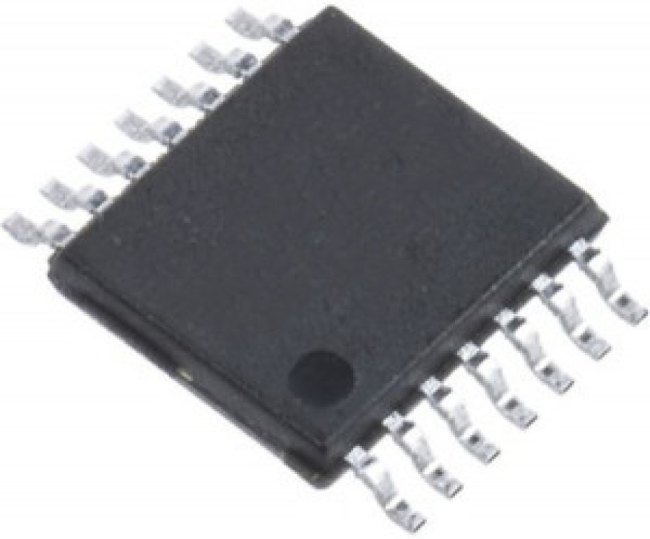

TSZ124IPT
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Операционный усилитель Quad Micropower Amplifier R-R I/O 5.5V 14-Pin TSSOP T/R
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:54:45 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | Zero Drift |
| amplifier type: | Zero Drift Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 115 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 37 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 400 kHz |
| ib - input bias current: | 300 pA |
| input type: | Rail-to-Rail |
| input voltage range - max: | 5.5 V |
| ios - input offset current: | 600 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | Micropower Amplifier |
| maximum input bias current (ua) | 0.0002 5V |
| maximum input offset current (ua) | 0.0004 5V |
| maximum input offset voltage (mv) | 0.005 5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 05.05.2024 |
| maximum supply current (ma) | 0.16 5V |
| minimum cmrr (db) | 115 |
| minimum cmrr range (db) | >=115 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 01.08.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 31 uA |
| operating supply voltage: | 1.8 V to 5.5 V |
| output current per channel: | 18 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | TSSOP-14 |
| package type | TSSOP14 |
| packaging | Tape and Reel |
| партномер | 8008679520 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| series: | TSZ124 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 190 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supplier temperature grade | Extended |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| type | Micropower Amplifier |
| typical gain bandwidth product | 400kHz |
| typical gain bandwidth product (mhz) | 0.4 |
| typical input noise voltage density (nv/rthz) | 37 5V |
| typical output current (ma) | 18 5V |
| typical settling time (ns) | 10000 |
| typical single supply voltage | 6 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate (v/us) | 0.19 5V |
| typical voltage gain (db) | 135 |
| vos - input offset voltage: | 1 uV |
