| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:54:53 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type: | CMOS Amplifier |
| automotive | Yes |
| cmrr - common mode rejection ratio: | 85 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 17.9 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current: | 100 pA |
| input type: | Rail-to-Rail |
| ios - input offset current: | 200 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.0001@16V |
| maximum input offset current (ua) | 0.0001@16V |
| maximum input offset voltage (mv) | 4@16V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 3.4@16V |
| maximum single supply voltage (v) | 16 |
| minimum cmrr (db) | 67 |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 4 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 3.1 mA |
| operating supply voltage: | 16 V |
| output current per channel: | 82 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |

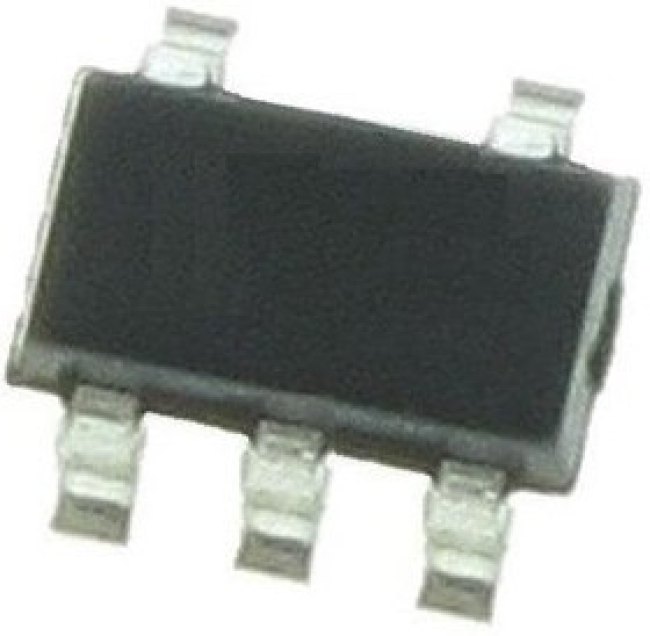

| package / case: | SOT-23-5 |
| packaging | Tape and Reel |
| партномер | 8004831836 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single |
| ppap | Unknown |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| series: | TSX921 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 17.2 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supplier temperature grade | Extended |
| supply type: | Single |
| supply voltage - max: | 16 V |
| supply voltage - min: | 4 V |
| type | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 10 |
| typical input bias current (ua) | 0.00001@16V |
| typical input noise voltage density (nv/rthz) | 16.5@16V |
| typical output current (ma) | 74@16V |
| typical settling time (ns) | 245 |
| typical single supply voltage (v) | 5|9|12|15 |
| typical slew rate (v/us) | 16.2@16V |
| typical voltage gain (db) | 113 |
| вес, г | 0.01 |
| vos - input offset voltage: | 4 mV |
