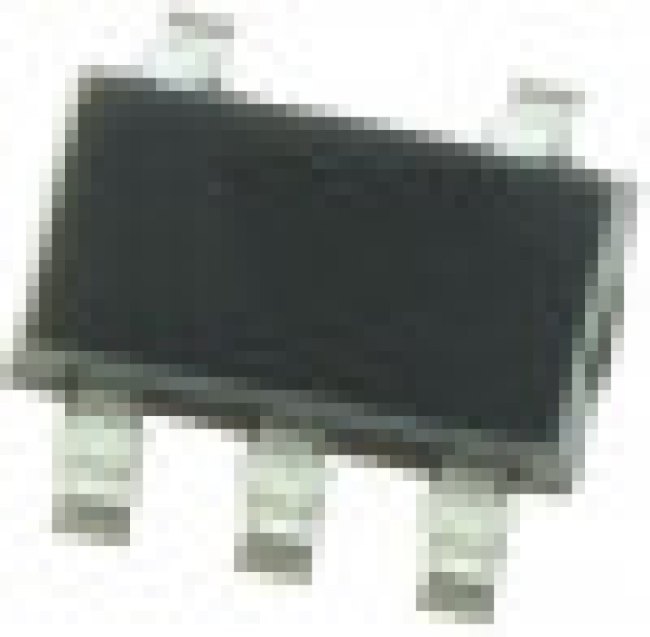

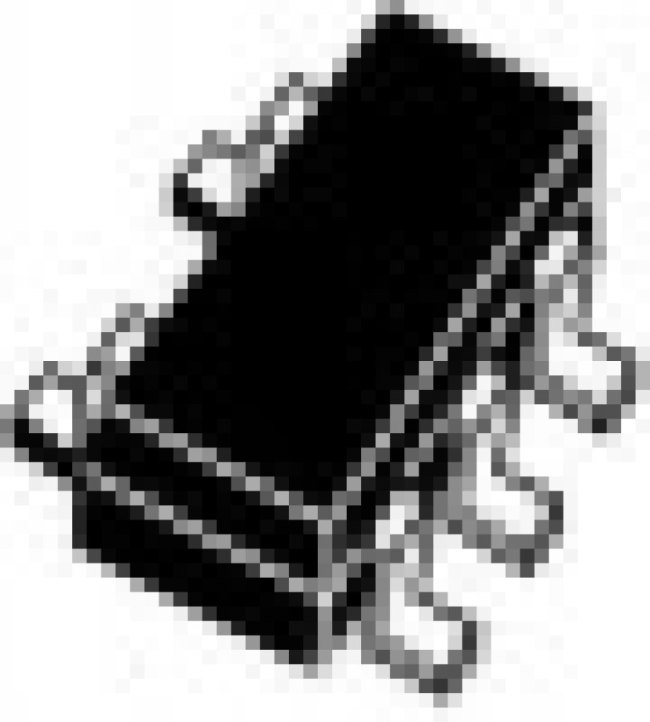

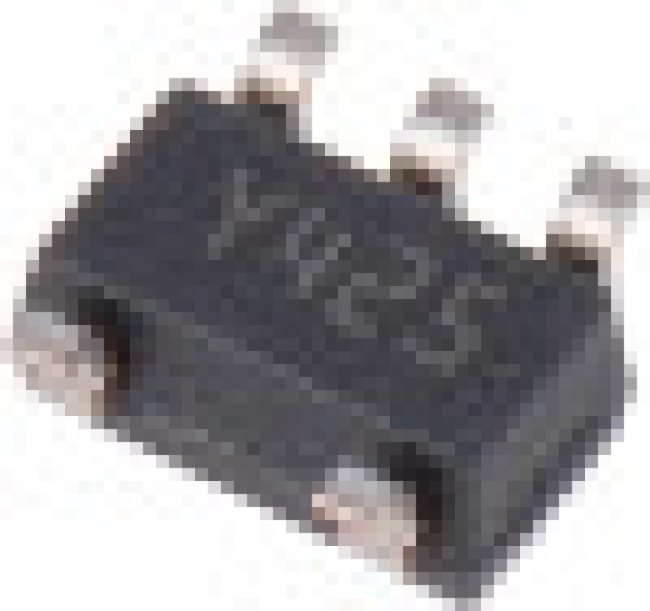

TSX711ILT, TSX711ILT, Precision, Op Amp, RRIO, 2.7MHz, 2.7 16 V, 5-Pin SOT-23
Оставить отзыв
В избранноеВ сравнение
Артикул: TSX711ILT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifiers & Comparators\Op AmpsLow input offset voltage: 200 μV max. Low current consumption: 800 μA max. Gain bandwidth product: 2.
Информация о производителе | |
Производитель | STMicroelectronics |
Основные | |
Дата загрузки | 05.05.2024 |
Время загрузки | 1:31:40 |
Бренд | STMicroelectronics |
Вес и габариты | |
3 db bandwidth: | 2.7 MHz |
amplifier type | Precision |
amplifier type: | Rail to Rail Operational Amplifier |
automotive | No |
cmrr - common mode rejection ratio: | 90 dB |
eccn (us) | EAR99 |
en - input voltage noise density: | 22 nV/sqrt Hz |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 3000 |
gbp - gain bandwidth product: | 2.7 MHz |
ib - input bias current: | 200 pA |
input type: | Rail-to-Rail |
ios - input offset current: | 200 pA |
категория | Электронные компоненты/Микросхемы |
lead shape | Gull-wing |
manufacturer: | STMicroelectronics |
manufacturer type | Precision Amplifier |
maximum input bias current (ua) | 0.00005@16V |
maximum input offset current (ua) | 0.00005@16V |
maximum input offset voltage (mv) | 0.2@16V |
maximum operating temperature | +125 °C |
maximum operating temperature: | +125 C |
maximum operating temperature (°c) | 125 |
maximum quiescent current (ma) | 0.9@16V |
maximum single supply voltage (v) | 16 |
minimum cmrr (db) | 94 |
minimum cmrr range (db) | 90 to 95 |
minimum operating temperature | -40 °C |
minimum operating temperature: | -40 C |
minimum operating temperature (°c) | -40 |
minimum single supply voltage (v) | 02.07.2024 |
mounting | Surface Mount |
mounting style: | SMD/SMT |
mounting type | Surface Mount |
number of channels: | 1 Channel |
number of channels per chip | 1 |
operating supply current: | 570 uA |
operating supply voltage: | 2.7 V to 16 V |
output current per channel: | 70 mA |
output type: | Rail-to-Rail |
package / case: | SOT-23-5 |
package type | SOT-23 |
packaging | Tape and Reel |
партномер | 8010471599 |
part status | Active |
pcb changed | 5 |
pin count | 5 |
power supply type | Single |
ppap | No |
product: | Operational Amplifiers |
product category: | Precision Amplifiers |
product type: | Precision Amplifiers |
psrr - power supply rejection ratio: | 131 dB |
rail to rail | Rail to Rail Input/Output |
series: | TSX711 |
shutdown: | No Shutdown |
shut down support | No |
sr - slew rate: | 850 mV/us |
standard package name | SOT |
subcategory: | Amplifier ICs |
supplier package | SOT-23 |
supplier temperature grade | Extended |
supply type: | Single |
supply voltage - max: | 16 V |
supply voltage - min: | 2.7 V |
type | PRECISION AMPLIFIER |
typical gain bandwidth product | 2.7MHz |
typical gain bandwidth product (mhz) | 02.07.2024 |
typical input noise voltage density (nv/rthz) | 22@16V |
typical input voltage noise density | 22nV/√Hz |
typical output current (ma) | 71@16V |
typical single supply voltage | 2.7 → 16 V |
typical slew rate | 0.95 V/μs, 1.4 V/μs |
typical slew rate (v/us) | 1.4@16V |
typical voltage gain | 149 dB |
typical voltage gain (db) | 149 |
вес, г | 2 |
vos - input offset voltage: | 600 uV |
width | 1.75mm |
