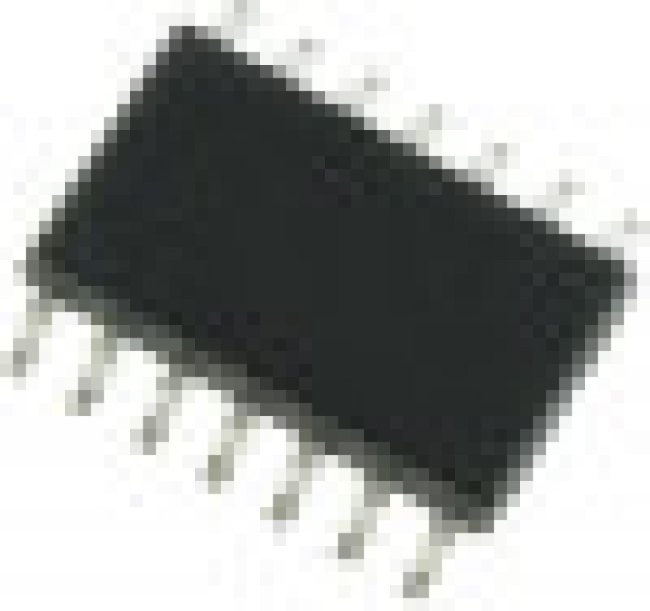

TSV914AIDT

Оставить отзыв
В избранноеВ сравнение
Электронные компоненты Микросхемы Усилители – Инструментальные, Операционные, Буферные ST Microelectronics TSV914AIDT
STMicroelectronics
Информация о производителе
ПроизводительSTMicroelectronics
Основные
Дата загрузки05.05.2024
Время загрузки1:31:40
БрендSTMicroelectronics
610
+
Бонус: 12.2 !
Бонусная программа
Итого: 610
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Automotive Op AmpsSTMicroelectronics Automotive Op Amps are used for a variety of industrial and automotive applications. The op-amps support temperature ranges that can go up to 150°C. These automotive grade operational amplifiers offer AECQ100 and Q101 compliance, TS-16949 certification, and PPAP availability.
Информация о производителе
ПроизводительSTMicroelectronics
Основные
Дата загрузки05.05.2024
Время загрузки1:31:40
БрендSTMicroelectronics
Вес и габариты
amplifier typeOperational Amplifier
amplifier type:General Purpose Amplifier
cmrr - common mode rejection ratio:58 dB
en - input voltage noise density:27 nV/sqrt Hz
factory pack quantity: factory pack quantity:2500
gbp - gain bandwidth product:8 MHz
ib - input bias current:10 pA
input offset current100pA
input voltage range2.5 → 5.5 V
категорияЭлектронные компоненты/Микросхемы
manufacturer:STMicroelectronics
maximum input voltage5.5 V
maximum operating frequency100 kHz
maximum operating temperature+125 °C
maximum operating temperature:+125 C
minimum input voltage2.5 V
minimum operating temperature-40 °C
minimum operating temperature:-40 C
mounting style:SMD/SMT
mounting typeSurface Mount
number of channels:4 Channel
number of channels per chip4
number of circuitsQuad
offset voltage7.5mV
operating supply current:1.1 mA
operating supply voltage:2.5 V to 5.5 V
operating temperature-40℃~+125℃
output current35 mA
output current per channel:35 mA
output typeRail to Rail
package / case:SOIC-14
package typeSO
партномер8007517069
pin count14
power supply typeSingle
product:Operational Amplifiers
product category:Operational Amplifiers-Op Amps
product type:Op Amps-Operational Amplifiers
rail to railRail to Rail Input/Output
series:TSV914A
shutdown:No Shutdown
sr - slew rate:4.5 V/us
subcategory:Amplifier ICs
supply type:Single
supply voltage - max:5.5 V
supply voltage - min:2.5 V
typical gain bandwidth product8MHz
typical input voltage noise density27nV/√Hz
typical single supply voltage2.5 → 5.5 V
typical slew rate4.5V/µs
typical voltage gain91 dB
voltage gain db:91 dB
vos - input offset voltage:1.5 mV
width4mm
-3db bandwidth-
