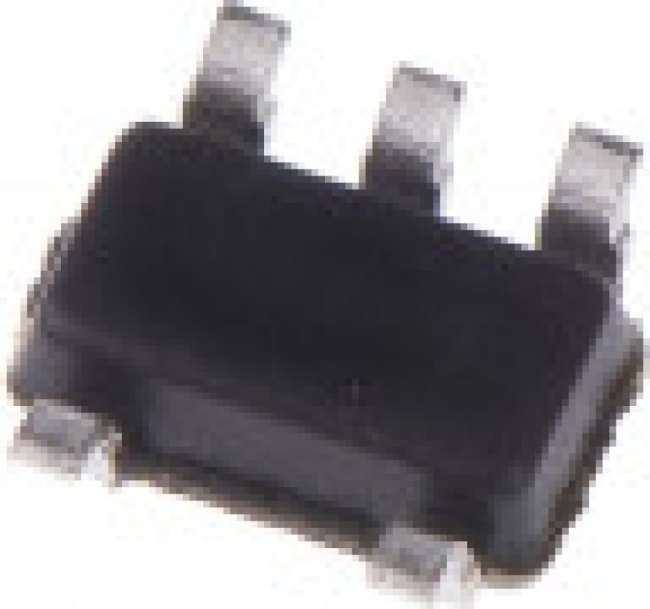

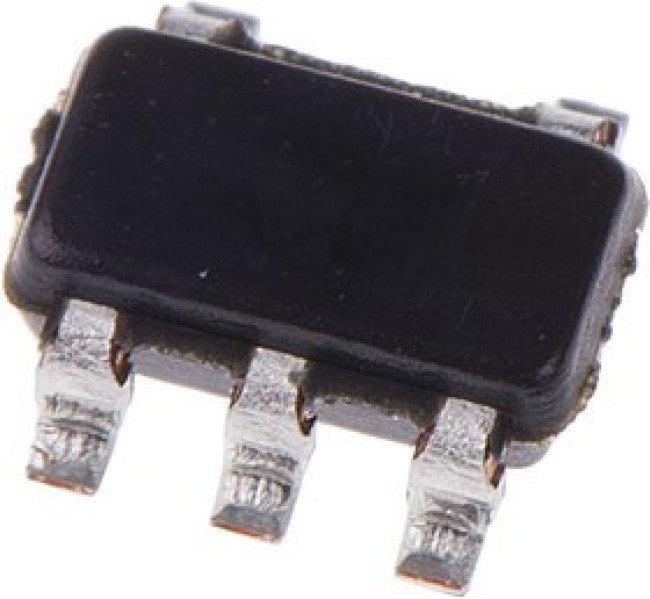

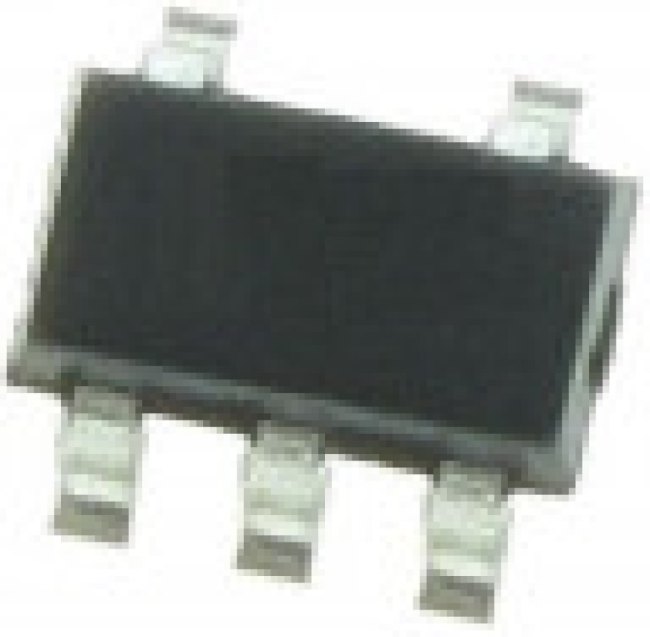

TSV321RILT, TSV321RILT , Op Amp, RRIO, 1.4MHz, 3 V, 5 V, 5-Pin SOT-23
Оставить отзыв
В избранноеВ сравнение
Артикул: TSV321RILT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifiers & Comparators\Op AmpsLow voltage versions of the LM358 and LM324 Power supply operation from 2.5 V to 6 V Rail-to-Rail input and output
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:36:04 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 85 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 27 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1.4 MHz |
| ib - input bias current: | 130 nA |
| input type: | Rail-to-Rail |
| ios - input offset current: | 3 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | Low Power Amplifier |
| maximum input bias current (ua) | 0.13 5V |
| maximum input offset current (ua) | 0.03 5V |
| maximum input offset voltage (mv) | 3 5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.835 5V |
| maximum single supply voltage (v) | 6 |
| minimum cmrr (db) | 65 |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.05.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 500 uA |
| operating supply voltage: | 2.5 V to 6 V |
| output current per channel: | 80 mA |
| output type: | Rail-to-Rail |
| package / case: | SOT-23-5 |
| package type | SOT-23 |
| packaging | Tape and Reel |
| партномер | 8009758548 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| series: | TSV321 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 600 mV/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supply type: | Single |
| supply voltage - max: | 6 V |
| supply voltage - min: | 2.5 V |
| type | Low Power Amplifier |
| typical gain bandwidth product | 1.4MHz |
| typical gain bandwidth product (mhz) | 01.04.2024 |
| typical input noise voltage density (nv/rthz) | 27 5V |
| typical input voltage noise density | 27nV/√Hz |
| typical output current (ma) | 80 5V |
| typical single supply voltage | 3 V, 5 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate | 0.6V/µs |
| typical slew rate (v/us) | 0.6 5V |
| typical voltage gain | 92 dB |
| typical voltage gain (db) | 92 |
| вес, г | 2 |
| voltage gain db: | 92 dB |
| vos - input offset voltage: | 3 mV |
| width | 1.75mm |
