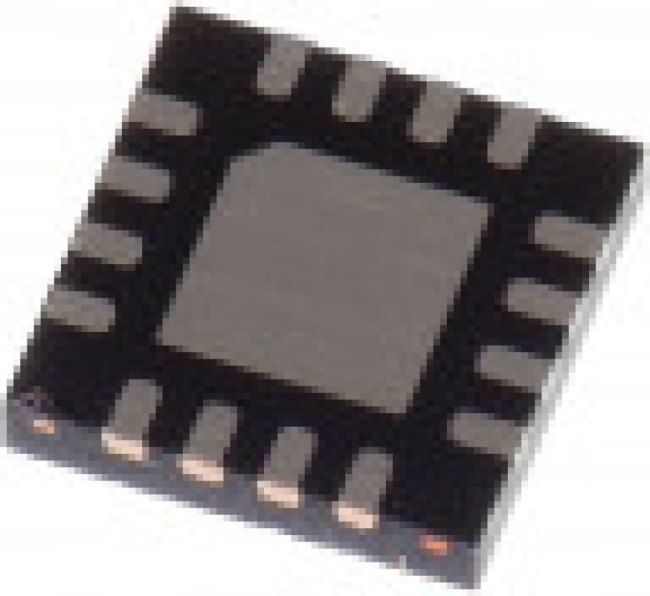

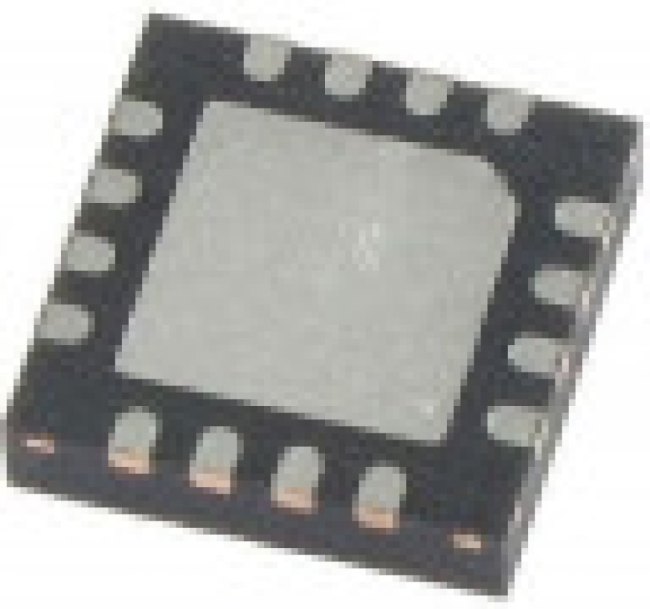

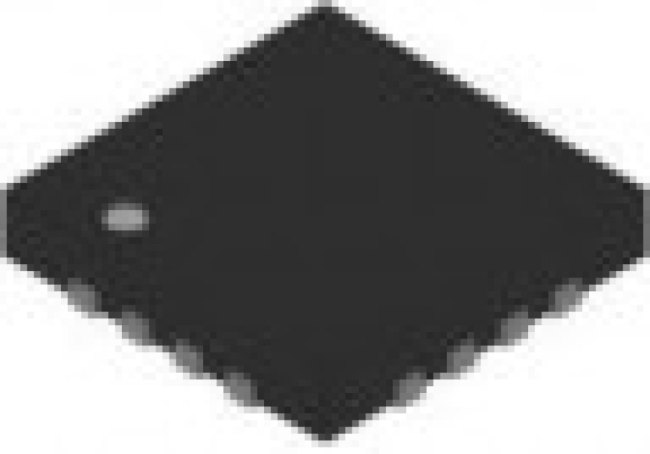

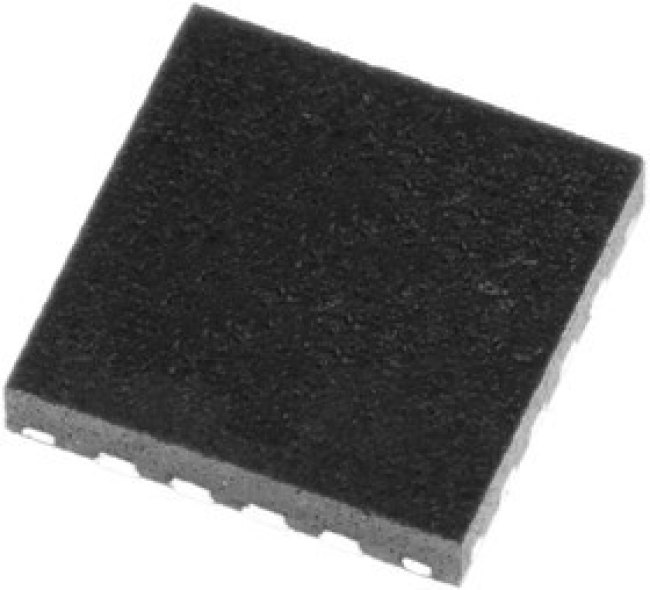

TSU104IQ4T, TSU104IQ4T, Low Power, Op Amp, RRIO, 8kHz 100 Hz, 1.5 5.5 V, 16-Pin QFN
Оставить отзыв
В избранноеВ сравнение
Артикул: TSU104IQ4T
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifiers & Comparators\Op AmpsThe TSU101 (Single), TSU102 (Dual), and TSU104 (Quad) operational amplifiers offer a low-power typical current of 580 nA per a channel when supplied by 1.
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:56:46 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | Low Power |
| amplifier type: | NanoPower Amplifier |
| automotive | No |
| base product number | TSU104 -> |
| cmrr - common mode rejection ratio: | 90 dB |
| current - input bias | 1pA |
| current - output / channel | 11mA |
| current - supply | 650nA (x4 Channels) |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 265 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gain bandwidth product | 9kHz |
| gbp - gain bandwidth product: | 8 kHz |
| htsus | 8542.33.0001 |
| ib - input bias current: | 5 pA |
| input type: | Rail-to-Rail |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| manufacturer: | STMicroelectronics |
| manufacturer type | Nanopower Amplifier |
| maximum input bias current (ua) | 0.000005@5V |
| maximum input offset current (ua) | 0.000005@5V |
| maximum input offset voltage (mv) | 3@5V |
| maximum operating frequency | 100 Hz |
| maximum operating temperature | +85 °C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 3.4@5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 65 |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 01.05.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of circuits | 4 |
| operating supply current: | 950 nA |
| operating supply voltage: | 1.5 V to 5.5 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 5 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |
| package / case | 16-VFQFN Exposed Pad |
| package / case: | QFN-16 |
| package type | QFN |
| packaging | Tape and Reel |
| партномер | 8009813906 |
| part status | active |
| pcb changed | 16 |
| pin count | 16 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | TSU104 |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 0.003V/Вµs |
| sr - slew rate: | 3 mV/us |
| standard package name | QFN |
| subcategory: | Amplifier ICs |
| supplier device package | 16-QFN (3x3) |
| supplier package | QFN EP |
| supplier temperature grade | Industrial |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.5 V |
| technology: | CMOS |
| type | Nanopower Amplifier |
| typical gain bandwidth product | 8kHz |
| typical gain bandwidth product (mhz) | 0.009 |
| typical input noise voltage density (nv/rthz) | 240@5V |
| typical input voltage noise density | 260nV/√Hz |
| typical noninverting input current noise density (pa/rthz) | 0.0035@5V |
| typical output current (ma) | 11@5V |
| typical single supply voltage | 1.5 → 5.5 V |
| typical slew rate | 3V/ms |
| typical slew rate (v/us) | 0.003@5V |
| typical voltage gain | 115 dB |
| typical voltage gain (db) | 130 |
| вес, г | 4 |
| voltage - input offset | 100ВµV |
| voltage - supply, single/dual (в±) | 1.5V ~ 5.5V |
| vos - input offset voltage: | 3 mV |
| width | 3mm |
