| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:57:03 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type: | General Purpose Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 50 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 25 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 3 MHz |
| ib - input bias current: | 100 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.1@5V |
| maximum input bias current - (ua) | 0.1@5V |
| maximum input offset current (ua) | 0.03@5V |
| maximum input offset current - (ua) | 0.03@5V |
| maximum input offset voltage (mv) | 6@5V |
| maximum input offset voltage - (mv) | 6@5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 2.8@5V |
| maximum single supply voltage (v) | 12 |
| military | No |
| minimum cmrr (db) | 50 |
| minimum cmrr range (db) | 50 to 60 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 2.8 mA |
| operating supply voltage: | 2.7 V to 12 V |
| operating temperature - (??c) | -40~125 |
| output current per channel: | 10 mA |
| output type | CMOS |

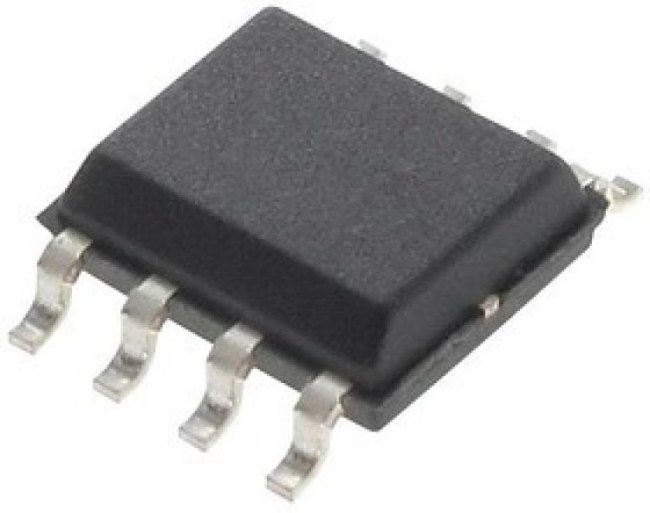

| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Tape and Reel |
| партномер | 8006412262 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single |
| ppap | No |
| process technology | BiCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| series: | TS952 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 1 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SO N |
| supply type: | Single |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| technology: | BiCMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 3MHz |
| typical gain bandwidth product (mhz) | 3 |
| typical gain bandwidth product - (mhz) | 3 |
| typical input noise voltage density (nv/rthz) | 25@5V |
| typical input voltage noise density | 25nV/√Hz |
| typical single supply voltage | 3 → 9 V |
| typical slew rate | 1V/µs |
| typical slew rate (v/us) | 1@5V |
| typical slew rate - (v/us) | 1@5V |
| typical voltage gain | 86 dB |
| typical voltage gain (db) | 86 |
| вес, г | 0.51 |
| voltage gain db: | 86 dB |
| vos - input offset voltage: | 6 mV |
| width | 3.9mm |
