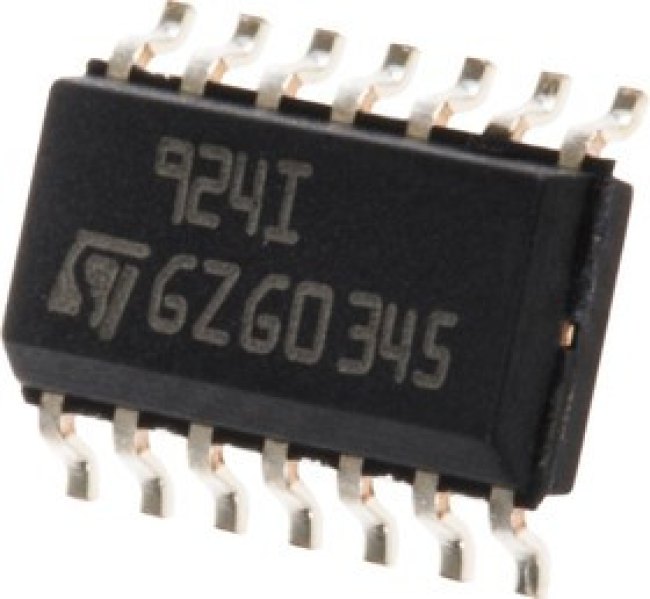

TS924ID
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементIC, OP AMP, QUAD RRI/O, SOIC14, 924; No. of Amplifiers:4 Amplifier; Bandwidth:4MHz; Slew Rate:1.3V/Вµs; Supply Voltage Range:2.7V to 12V; Amplifier Case Style:SOIC; No. of Pins:14Pins; Operating Temperature Min:-40В°C; Ope
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:53:00 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | High Current |
| amplifier type: | General Purpose Amplifier |
| cmrr - common mode rejection ratio: | 60 dB |
| common mode rejection ratio | 60(dB) |
| dual supply voltage (max) | Not Required(V) |
| dual supply voltage (min) | Not Required(V) |
| dual supply voltage (typ) | Not Required(V) |
| en - input voltage noise density: | 9 nV/sqrt Hz |
| factory pack quantity: factory pack quantity: | 1000 |
| gbp - gain bandwidth product: | 4 MHz |
| ib - input bias current: | 100 nA |
| input bias current | 100(nA) |
| input offset voltage | 3(mV) |
| категория | Электронные компоненты/Микросхемы |
| manufacturer: | STMicroelectronics |
| maximum input offset current | 0.03@5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of elements | 4 |
| operating supply current: | 1 mA |
| operating supply voltage: | 2.7 V to 12 V |
| operating temperature classification | Automotive |
| operating temp range | -40C to 125C |
| output current per channel: | 80 mA |
| package / case: | SOIC-14 |
| package type | SOIC |
| packaging | Tape and Reel |
| packaging: | Tube |
| партномер | 8002931056 |
| pin count | 14 |
| power supply requirement | Single |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 60 dB |
| rad hardened | No |
| rail to rail | Rail to Rail Input/Output |
| series: | TS924 |
| shutdown: | No Shutdown |
| shut down feature | No |
| single supply voltage (max) | 12(V) |
| single supply voltage (min) | 2.7(V) |
| single supply voltage (typ) | 3/5(V) |
| slew rate | 1.3(V/us) |
| sr - slew rate: | 1.3 V/us |
| subcategory: | Amplifier ICs |
| supply current | 7@5V(mA) |
| supply type: | Single |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| technology | BiCMOS |
| technology: | BiCMOS |
| typical gain bandwidth product | 4MHz |
| typical input voltage noise density | 9nV/√Hz |
| typical single supply voltage | 3 V, 5 V |
| typical slew rate | 1.3V/µs |
| typical voltage gain | 106 dB |
| unity gain bandwidth product | 4 |
| вес, г | 0.001 |
| voltage gain db: | 106.02 dB |
| voltage gain in db | 106.02(dB) |
| vos - input offset voltage: | 3 mV |
| width | 4mm |
