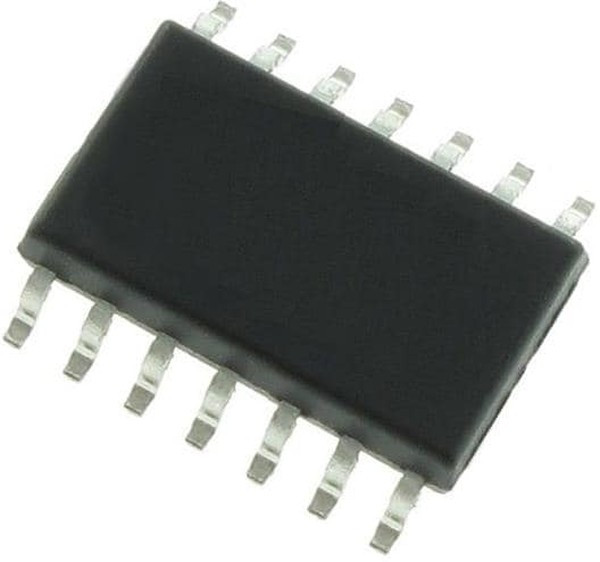

TS924AIYDT
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Operational Amplifiers - Op Amps Excellent audio performance / low distortion (0.005%)
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:40:26 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | Quad Operational Amplifier |
| amplifier type: | General Purpose Amplifier |
| cmrr - common mode rejection ratio: | 60 dB |
| en - input voltage noise density: | 9 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 4 MHz |
| ib - input bias current: | 100 nA |
| input type: | Rail-to-Rail |
| ios - input offset current: | 1 nA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.1@5V |
| maximum input offset current (ua) | 0.03@5V |
| maximum input offset voltage (mv) | 0.9@5V |
| maximum operating frequency | 4 MHz |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 12 |
| maximum supply current (ma) | 7@5V |
| minimum cmrr (db) | 60 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 1 mA |
| operating supply voltage: | 3 V, 5 V |
| output current per channel: | 80 mA |
| output type | CMOS|Rail to Rail |
| output type: | Rail-to-Rail |
| package / case: | SOIC-14 |
| package height (mm) | 1.65(Max) |
| package length (mm) | 8.75(Max) |
| package type | D SO14 |
| package width (mm) | 4(Max) |
| packaging | Tape and Reel |
| партномер | 8007511739 |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 60 dB |
| qualification: | AEC-Q100 |
| rail to rail | Rail to Rail Input/Output |
| series: | TS924A |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 1.3 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Single |
| supply voltage - max: | 12 V |
| supply voltage - min: | 2.7 V |
| technology | BiCMOS |
| technology: | BiCMOS |
| thd plus noise: | 0.005% |
| topology: | Current Feedback |
| type | General Purpose Amplifier |
| typical gain bandwidth product | 4MHz |
| typical gain bandwidth product (mhz) | 4 |
| typical single supply voltage | 5 V |
| typical single supply voltage (v) | 3|5 |
| typical slew rate (v/us) | 1.3@5V |
| typical voltage gain (db) | 106.02 |
| vcm - common mode voltage: | -0.2 V to+3.2 V |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage: | 900 uV |
