| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:59:21 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type: | CMOS Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 85 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 30 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 150 pA |
| input type: | Rail-to-Rail |
| ios - input offset current: | 1 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | STMicroelectronics |
| manufacturer type | General Purpose Amplifier |
| maximum input bias current (ua) | 0.00015@5V |
| maximum input offset current (ua) | 0.0001@5V |
| maximum input offset voltage (mv) | 5@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum single supply voltage (v) | 16 |
| maximum supply current (ma) | 1.4@5V |
| minimum cmrr (db) | 85(Typ) |
| minimum cmrr range (db) | 85 to 90 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 230 uA |
| operating supply voltage: | 2.7 V to 16 V, +/-1.35 V to+/-8 V |
| output current per channel: | 60 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |

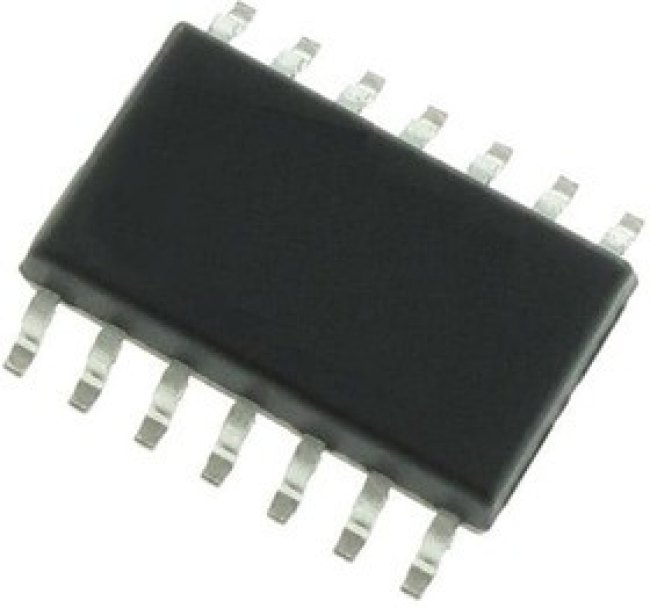

| package / case: | SOIC-14 |
| packaging | Tape and Reel |
| партномер | 8006796481 |
| part status | active |
| pcb changed | 14 |
| pin count | 14 |
| power supply type | Single |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 80 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | TS914A |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 800 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type: | Single, Dual |
| supply voltage - max: | 16 V, +/-8 V |
| supply voltage - min: | 2.7 V, +/-1.35 V |
| technology: | CMOS |
| type | General Purpose Amplifier |
| typical gain bandwidth product (mhz) | 1 |
| typical input noise voltage density (nv/rthz) | 30@5V |
| typical output current (ma) | 40@3V |
| typical single supply voltage (v) | 3|5|9|12|15 |
| typical slew rate (v/us) | 0.8@5V |
| typical voltage gain (db) | 92.04 |
| вес, г | 0.26 |
| voltage gain db: | 92.04 dB |
| vos - input offset voltage: | 5 mV |
