| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:03:37 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Power |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| development kit: | OPAMPEVM |
| eccn (us) | ear99 |
| en - input voltage noise density: | 30 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| gbp - gain bandwidth product: | 1 MHz |
| ib - input bias current: | 5 pA |
| input offset voltage drift (uv/°c) | 0.6(Typ) |
| input type: | Rail-to-Rail |
| in - input noise current density: | 23 fA/sqrt Hz |
| ios - input offset current: | 2 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | no lead |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage: | +/-2.75 V |
| maximum dual supply voltage (v) | ±2.75 |
| maximum input offset voltage (mv) | 1.6@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 0.15@5.5V |
| maximum single supply voltage (v) | 05.05.2024 |
| minimum cmrr (db) | 63 |
| minimum cmrr range (db) | 60 to 65 |
| minimum dual supply voltage: | +/-900 mV |
| minimum dual supply voltage (v) | ±0.9 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 80 |
| minimum single supply voltage (v) | 01.08.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 60 uA |
| output current per channel: | 40 mA |
| output type: | Rail-to-Rail |

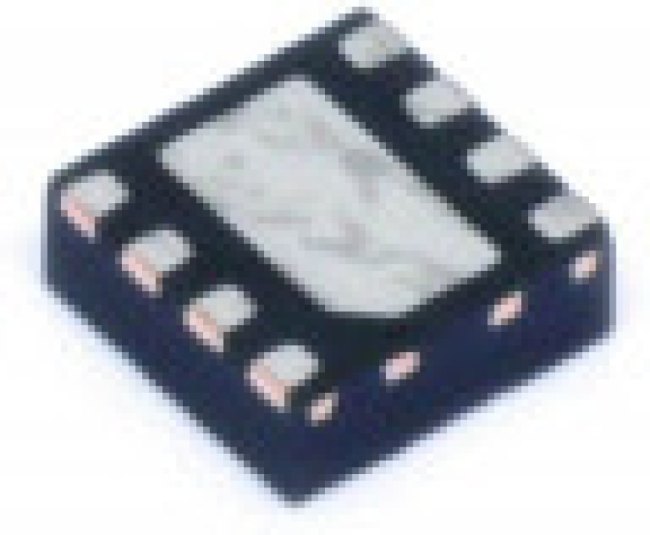

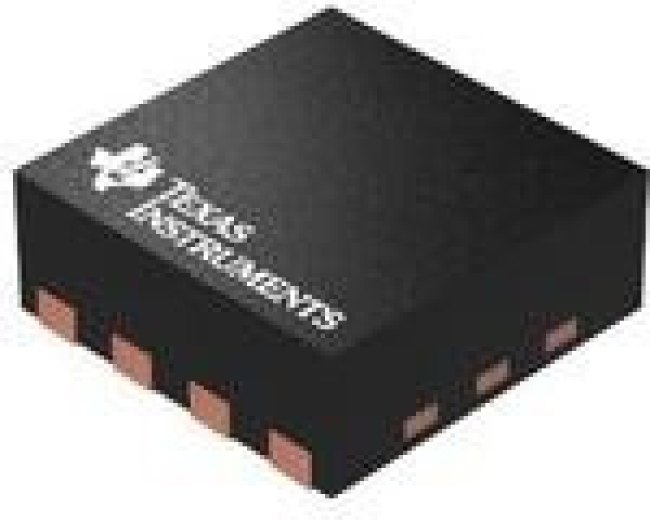

| package / case: | WSON-8 |
| packaging | Tape and Reel |
| партномер | 8022992000 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 105 dB |
| rail to rail | Rail to Rail Input/Output |
| series: | TLV9002 |
| shutdown: | Shutdown |
| shut down support | No |
| sr - slew rate: | 2 V/us |
| standard package name | SON |
| subcategory: | Amplifier ICs |
| supplier package | WSON EP |
| supplier temperature grade | Extended |
| supply voltage - max: | 5.5 V |
| supply voltage - min: | 1.8 V |
| thd plus noise: | 0.004% |
| type | Low Power Amplifier |
| typical gain bandwidth product (mhz) | 1 |
| typical input bias current (ua) | 0.000005@5V |
| typical input noise voltage density (nv/rthz) | 30@5V |
| typical noninverting input current noise density (pa/rthz) | 0.023@5V |
| typical output current (ma) | 40 |
| typical output resistance (ohm) | 1200 |
| typical settling time (ns) | 3000 |
| typical slew rate (v/us) | 2@5V |
| typical voltage gain (db) | 130 |
| vcm - common mode voltage: | 5.6 V |
| вес, г | 0.01 |
| vos - input offset voltage: | 1.6 mV |
