| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 4:01:20 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Precision |
| amplifier type: | CMOS |
| automotive | No |
| cmrr - common mode rejection ratio | 72 dB to 90 dB |
| cmrr - common mode rejection ratio: | 90 dB |
| en - input voltage noise density | 12 nV/sqrt Hz |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| factory pack quantity | 2000 |
| factory pack quantity: factory pack quantity: | 2000 |
| features | Cost Optimized, EMI Hardened |
| features: | Cost Optimized, EMI Hardened |
| gbp - gain bandwidth product | 10 MHz |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current | 10 pA |
| ib - input bias current: | 10 pA |
| input offset current | 10pA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| input voltage range | 1.8 → 5.5 V |
| in - input noise current density | 1.3 fA/sqrt Hz |
| in - input noise current density: | 1.3 fA/sqrt Hz |
| ios - input offset current | 10 pA |
| ios - input offset current: | 10 pA |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum input offset current - (ua) | 0.00001(Typ)@5.5V |
| maximum input offset voltage - (mv) | 3@5V |
| maximum input voltage | 5.5 V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| military | No |
| minimum input voltage | 1.8 V |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| moisture sensitive | Yes |
| moisture sensitive: | Yes |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| offset voltage | ±4.5mV |
| operating supply current | 400 uA |
| operating supply current: | 400 uA |
| operating temperature - (??c) | -40~125 |
| output current | ±50 mA |
| output current per channel | 50 mA |
| output current per channel: | 50 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |

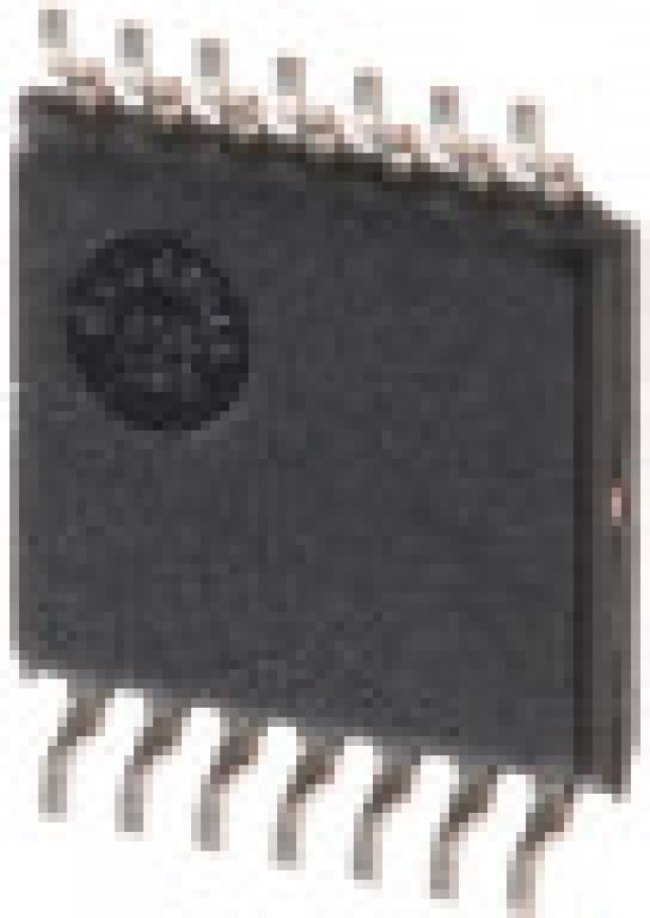

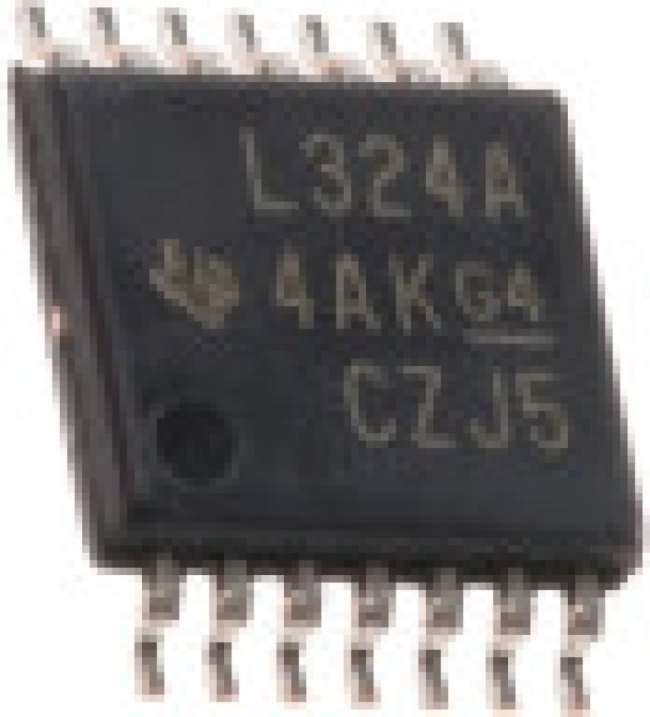

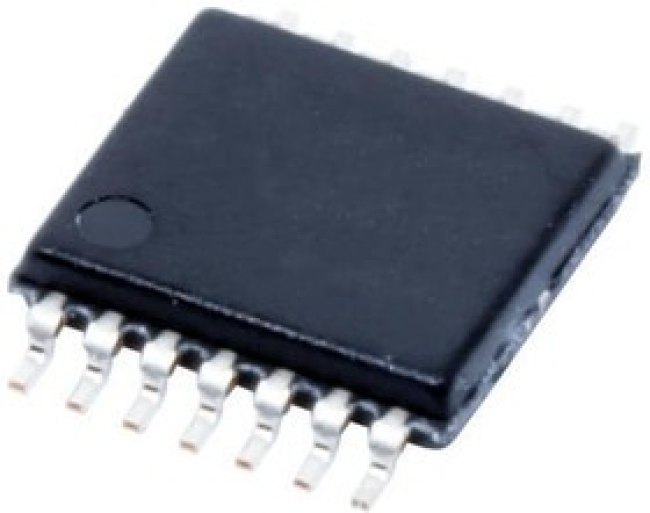

| package / case | TSSOP-14 |
| package / case: | TSSOP-14 |
| package type | TSSOP |
| packaging | Cut Tape |
| партномер | 8005015066 |
| pin count | 14 |
| power supply type | Single |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| series | TLV4316 |
| series: | TLV4316 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 6 V/us |
| sr - slew rate: | 6 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supply voltage - max | 5.5 V |
| supply voltage - max: | 5.5 V |
| supply voltage - min | 1.8 V |
| supply voltage - min: | 1.8 V |
| thd plus noise | 0.008% |
| thd plus noise: | 0.008% |
| typical gain bandwidth product | 10MHz |
| typical gain bandwidth product - (mhz) | 10 |
| typical input voltage noise density | 12nV/√Hz |
| typical slew rate | 6V/µs |
| typical slew rate - (v/us) | 6@5.5V |
| typical voltage gain | 104 dB |
| unit weight | 0.004949 oz |
| vcm - common mode voltage | 1.6 V to 5.7 V |
| vcm - common mode voltage: | 1.6 V to 5.7 V |
| вес, г | 0.14 |
| vos - input offset voltage | 3 mV |
| vos - input offset voltage: | 3 mV |
| width | 4.5mm |
