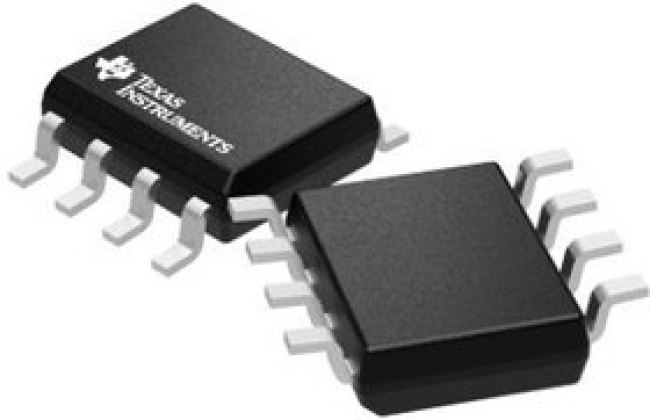

TLV4111CD
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Integrated Circuits (ICs)\Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsУсилитель общего назначения 1 схема Rail-to-Rail 8-SOIC
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:33:10 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose |
| amplifier type: | High Output Drive Amplifier |
| base product number | TLV4111 -> |
| cmrr - common mode rejection ratio: | 68 dB |
| current - input bias | 0.3pA |
| current - output / channel | 320mA |
| current - supply | 700ВµA |
| eccn | EAR99 |
| eccn (us) | ear99 |
| en - input voltage noise density: | 10 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 75 |
| gain bandwidth product | 2.7MHz |
| gbp - gain bandwidth product: | 2.7 MHz |
| hts | 8542.33.00.01 |
| htsus | 8542.33.0001 |
| ib - input bias current: | 50 pA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.00031 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | High Output Drive Amplifier |
| maximum input bias current (ua) | 0.00005@5V |
| maximum input offset current (ua) | 0.000025@5V |
| maximum input offset voltage (mv) | 3.5@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 710 |
| maximum single supply voltage (v) | 6 |
| maximum supply current (ma) | 1@5V |
| minimum cmrr (db) | 68(Typ) |
| minimum cmrr range (db) | 65 to 70 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 02.05.2024 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current: | 700 uA |
| operating supply voltage: | 2.5 V to 6 V |
| operating temperature | 0В°C ~ 70В°C |
| output current per channel: | 320 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tube |
| package / case | 8-SOIC (0.154"", 3.90mm Width) |
| package / case: | SOIC-8 |
| package height | 1.5(Max) |
| package length | 5(Max) |
| package width | 4(Max) |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005930038 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 710 mW |
| pin count | 8 |
| power supply type | Single |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series: | TLV4111 |
| shutdown: | No Shutdown |
| shut down support | No |
| slew rate | 1.57V/Вµs |
| sr - slew rate: | 1.57 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier device package | 8-SOIC |
| supplier package | SOIC |
| supplier temperature grade | Commercial |
| supply type: | Single |
| supply voltage - max: | 6 V |
| supply voltage - min: | 2.5 V |
| type | High Output Drive Amplifier |
| typical gain bandwidth product (mhz) | 02.07.2024 |
| typical input noise voltage density (nv/rthz) | 55@5V |
| typical noninverting input current noise density (pa/rthz) | 0.00031@5V |
| typical output current (ma) | 320@5V |
| typical settling time (ns) | 1300 |
| typical single supply voltage (v) | 3|5 |
| typical slew rate (v/us) | 1.57@5V |
| typical voltage gain (db) | 110 |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1 V |
| voltage gain db: | 110 dB |
| voltage - input offset | 175ВµV |
| voltage - supply, single/dual (в±) | 2.5V ~ 6V |
| vos - input offset voltage: | 3.5 mV |
