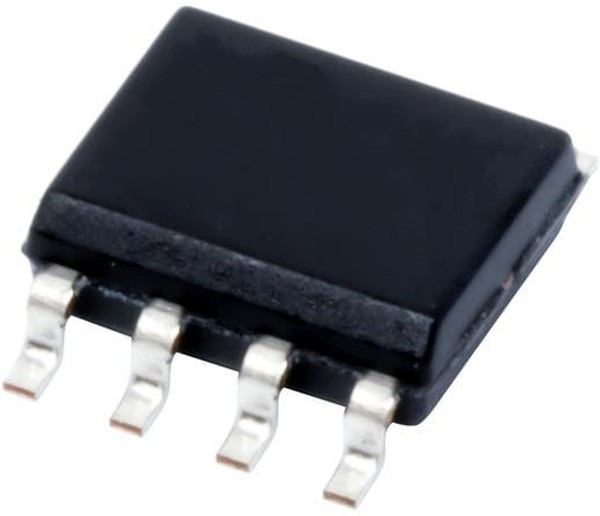

TLV2772CD, Операционный усилитель, 2 Усилителя, 5.1 МГц, 6 В/мкс, 2.5В до 6В, SOIC, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe TLV2772CD is a dual Operational Amplifier with rail-to-rail output. The CMOS operational amplifier combines high slew rate and bandwidth, high output drive and excellent DC precision. The device provides 10.5V/µs of slew rate and 5.1MHz of bandwidth while only consuming 1mA of supply current per channel. This AC performance is much higher than current competitive CMOS amplifier. The rail-to-rail output swing and high output drive make this device a good choice for driving the analog input or reference of analog-to-digital converters. This device also has low distortion while driving a 600R load for use in telecom systems. This amplifier has a 360µV input offset voltage, a 17nV/√Hz input noise voltage and a 2pA input bias current for measurement. • 0.005% THD+N• 1mA/channel Supply current• 2pA Input bias current• <1µA Micropower shutdown mode• 2µV/°C Typical offset drift• 96dB Typical CMRR• Green product and no Sb/Br
