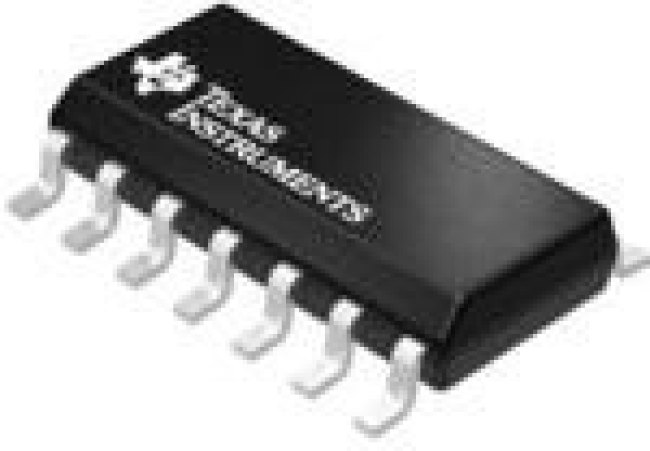

TLV274CDR, SOIC-14 Operational Amplifier ROHS
Оставить отзыв
В избранноеВ сравнение
Артикул: TLV274CDR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Quad Low Power Amplifier R-R O/P ±8V/16V 14-Pin SOIC T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:54:51 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 80 dB |
| dual supply voltage: | +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 39 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 3 MHz |
| ib - input bias current: | 60 pA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage: | +/-8 V |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.00006@5V |
| maximum input offset current (ua) | 0.00006@5V |
| maximum input offset voltage (mv) | 5@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 531 |
| maximum single supply voltage (v) | 16 |
| maximum supply current (ma) | 2.64@5V |
| minimum cmrr (db) | 65 |
| minimum cmrr range (db) | 65 to 70 |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current: | 625 uA |
| operating supply voltage: | 2.7 V to 16 V, +/-1.35 V to+/-8 V |
| output current per channel: | 13 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | SOIC-14 |
| packaging | Tape and Reel |
| партномер | 8017620465 |
| part status | active |
| pcb changed | 14 |
| pd - power dissipation: | 531 mW |
| pin count | 14 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | CMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 70 dB |
| rail to rail | Rail to Rail Output |
| series: | TLV274 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 2.1 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supplier temperature grade | Commercial |
| supply type: | Single, Dual |
| supply voltage - max: | 16 V |
| supply voltage - min: | 2.7 V |
| technology: | CMOS |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±5 |
| typical gain bandwidth product (mhz) | 3 |
| typical input noise voltage density (nv/rthz) | 39@5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5V |
| typical output current (ma) | 7@5V |
| typical settling time (ns) | 2900 |
| typical slew rate (v/us) | 2.4@5V |
| typical voltage gain (db) | 110 |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.35 V |
| вес, г | 0.19 |
| voltage gain db: | 110 dB |
| vos - input offset voltage: | 5 mV |
