| Информация о производителе | |
| Производитель | DIODES INC. |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:09:36 |
| Бренд | DIODES INC. |
| Вес и габариты | |
| amplifier type | CMOS |
| amplifier type: | Operational Amplifier |
| base product number | TLV271 -> |
| cmrr - common mode rejection ratio | 69 dB |
| cmrr - common mode rejection ratio: | 69 dB |
| current - input bias | 1pA |
| current - output / channel | 8mA |
| current - supply | 550ВµA |
| eccn | EAR99 |
| en - input voltage noise density: | 25 nV/sqrt Hz |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| gain bandwidth product | 1.9MHz |
| gbp - gain bandwidth product | 1.9 MHz |
| gbp - gain bandwidth product: | 1.9 MHz |
| htsus | 8542.33.0001 |
| ib - input bias current | 1 nA |
| ib - input bias current: | 1 nA |
| input type | CMOS |
| input type: | CMOS |
| ios - input offset current | 1 nA |
| ios - input offset current: | 1 nA |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | DIODES INCORPORATED |
| manufacturer: | Diodes Incorporated |
| maximum operating frequency | 10 kHz |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current | 625 uA |
| operating supply current: | 625 uA |
| operating supply voltage | 2.7 V to 16 V |
| operating supply voltage: | 2.7 V to 16 V |
| operating temperature | -40В°C ~ 125В°C |
| output current per channel | 13 mA |
| output current per channel: | 13 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package | Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ® |

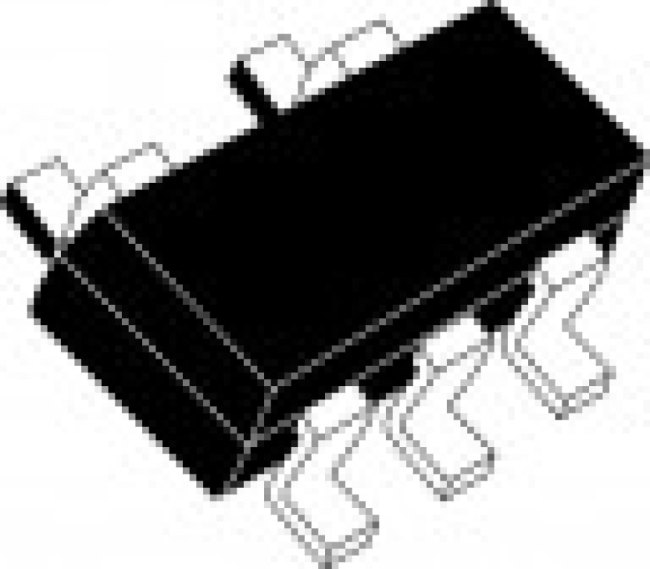

| package / case | SC-74A, SOT-753 |
| package / case: | SOT-25-5 |
| package type | SOT-25 |
| packaging | Cut Tape or Reel |
| партномер | 8005061116 |
| pd - power dissipation | 220 mW |
| pd - power dissipation: | 220 mW |
| pin count | 5 |
| power supply type | Dual, Single |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 80 dB |
| psrr - power supply rejection ratio: | 80 dB |
| rail to rail | Rail to Rail Output |
| reach status | REACH Unaffected |
| rohs status | ROHS3 Compliant |
| series | TLV271 |
| series: | TLV271 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| slew rate | 2V/Вµs |
| sr - slew rate | 2.2 V/us |
| sr - slew rate: | 2.2 V/us |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supplier device package | SOT-25 |
| supply type | Single |
| supply type: | Single |
| supply voltage - max: | +/-8 V |
| supply voltage - min: | +/-1.35 V |
| typical dual supply voltage | ±5V |
| typical gain bandwidth product | 1.9MHz |
| typical input voltage noise density | 35nV/√Hz |
| typical single supply voltage | 2.7 → 16 V |
| typical slew rate | 2.2V/µs |
| typical voltage gain | 115 dB |
| вес, г | 0.06 |
| voltage - input offset | 500ВµV |
| voltage - supply, single/dual (в±) | 2.7V ~ 16V, В±1.35V ~ 8V |
| vos - input offset voltage | 500 uV |
| vos - input offset voltage: | 500 uV |
| width | 1.7mm |
