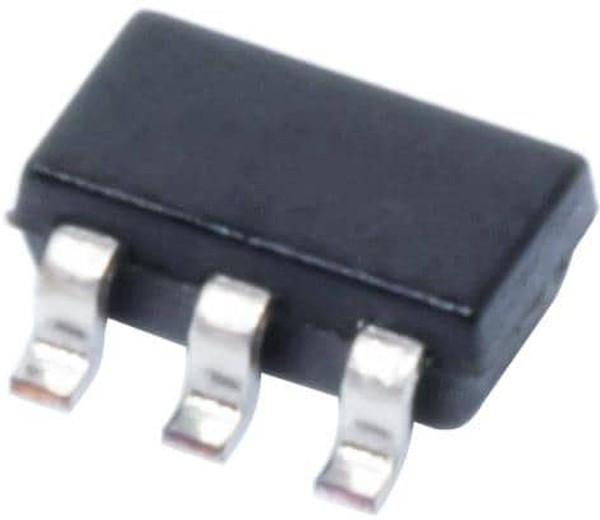

TLV2460IDBVT, Операционный усилитель, 1 Усилитель, 6.4 МГц, 1.6 В/мкс, 2.7В до 6В, SOT-23, 6 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe TLV2460IDBVT is a single low power Operational Amplifier with shutdown function, rail-to-rail input/output. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifier. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters. The operational amplifier has 6.4MHz of bandwidth and 1.6V/µs of slew rate with only 500µA of supply current, providing good AC performance with low power consumption. Three members of the family offer a shutdown terminal, which places the amplifier in an ultralow supply current mode (IDD=0.3µA/channel). While in shutdown, the operational-amplifier output is placed in a high-impedance state. • Universal operational amplifier EVM• ±80mA Output drive capability• 500µA/channel Supply current• 100µV Input offset voltage• 11nV/√Hz Input noise voltage• 0.3µA/channel Micropower shutdown mode• Green product and no Sb/Br
