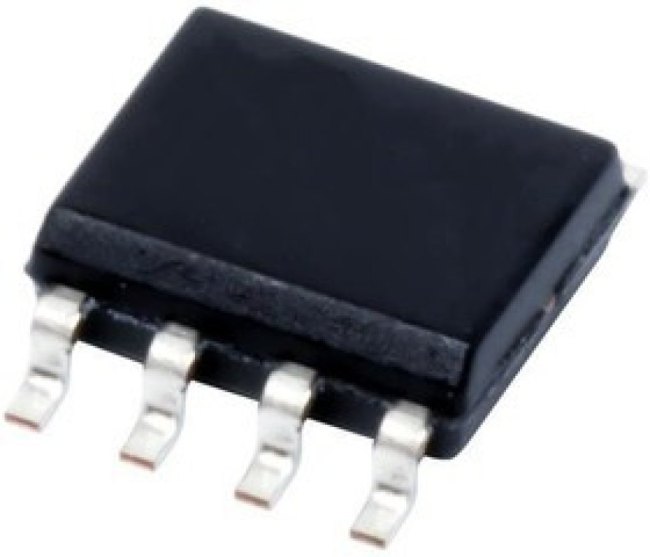

TLV2372ID, Operational Amplifiers - Op Amps 550uA 3MHz R/R
Оставить отзыв
В избранноеВ сравнение
Артикул: TLV2372ID
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op Amps Описание Микросхема операционный усилитель, 3МГц, 2,7-16В, SO8 Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
2
Мин.напряжение питания, В
2.7
Макс.напряжение питания, В
16
Особенности
rail-to-rail
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:57:17 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Precision |
| amplifier type: | General Purpose Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 55 dB to 72 dB |
| cmrr - common mode rejection ratio: | 84 dB |
| dual supply voltage | +/-3 V, +/-5 V |
| dual supply voltage: | +/-3 V, +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 39 nV/sqrt Hz |
| en - input voltage noise density: | 39 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 450 |
| gbp - gain bandwidth product | 3 MHz |
| gbp - gain bandwidth product: | 3 MHz |
| height | 1.58 mm |
| ib - input bias current | 60 pA |
| ib - input bias current: | 60 pA |
| input offset voltage drift (uv/°c) | 2(Typ) |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.0006 pA/sqrt Hz |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 4.9 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | General Purpose Amplifier |
| maximum dual supply voltage | +/-8 V |
| maximum dual supply voltage: | +/-8 V |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.00006@15V |
| maximum input offset current (ua) | 0.00006@15V |
| maximum input offset voltage (mv) | 4.5@5V |
| maximum operating temperature | +125 °C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 710 |
| maximum single supply voltage (v) | 16 |
| maximum supply current (ma) | 1.32@5V |
| minimum cmrr (db) | 55 |
| minimum cmrr range (db) | 50 to 60 |
| minimum dual supply voltage | +/-1.35 V |
| minimum dual supply voltage: | +/-1.35 V |
| minimum dual supply voltage (v) | ±1.35 |
| minimum operating temperature | -40 °C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 70 |
| minimum single supply voltage (v) | 02.07.2024 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current | 550 uA |
| operating supply current: | 550 uA |
| operating supply voltage | 2.7 V to 16 V, +/-1.35 V to+/-8 V |
| operating supply voltage: | 2.7 V to 16 V, +/-1.35 V to+/-8 V |
| output current per channel | 16 mA |
| output current per channel: | 7 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case | SOIC-8 |
| package / case: | SOIC-8 |
| package type | SOIC |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8005014481 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation | 710 mW |
| pd - power dissipation: | 710 mW |
| pin count | 8 |
| power supply type | Dual, Single |
| ppap | No |
| priced to clear | Yes |
| process technology | CMOS |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 70 dB |
| psrr - power supply rejection ratio: | 70 dB |
| rail to rail | Rail to Rail Input/Output |
| rohs | Details |
| series | TLV2372 |
| series: | TLV2372 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 2.4 V/us |
| sr - slew rate: | 2.4 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supplier temperature grade | Industrial |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 16 V |
| supply voltage - max: | 16 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| type | General Purpose Amplifier |
| typical dual supply voltage | ±3 V, ±5 V |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product | 3MHz |
| typical gain bandwidth product (mhz) | 3 |
| typical high level output voltage (v) | 4.93 |
| typical input bias current (ua) | 0.000001@15V |
| typical input noise voltage density (nv/rthz) | 39@5V |
| typical input voltage noise density | 39nV/√Hz |
| typical low level output voltage (v) | 0.28 |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5V |
| typical output current (ma) | 8@5V |
| typical settling time (ns) | 2000 |
| typical single supply voltage | 3 → 15 V |
| typical slew rate | 2.4V/µs |
| typical slew rate (v/us) | 2.4@5V |
| typical voltage gain | 110 dB |
| typical voltage gain (db) | 110 |
| unit weight | 0.002561 oz |
| vcm - common mode voltage | Negative Rail to Positive Rail |
| вес, г | 0.07 |
| voltage gain db | 110 dB |
| voltage gain db: | 110 dB |
| vos - input offset voltage | 4.5 mV |
| vos - input offset voltage: | 4.5 mV |
| width | 3.91mm |
