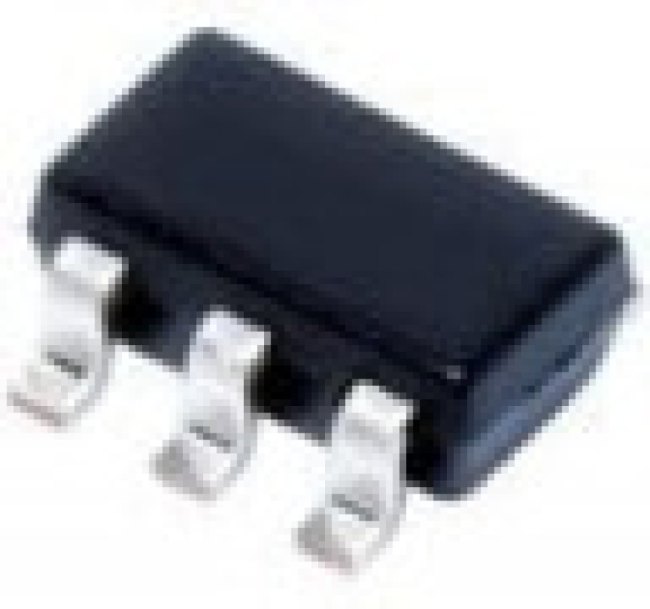

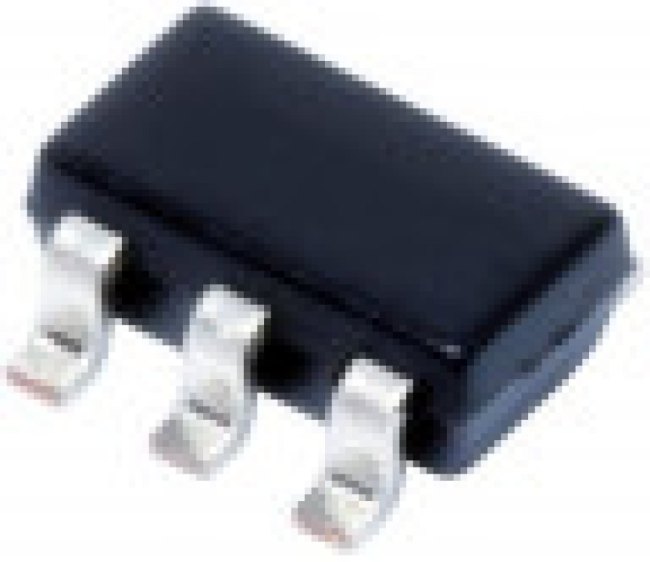

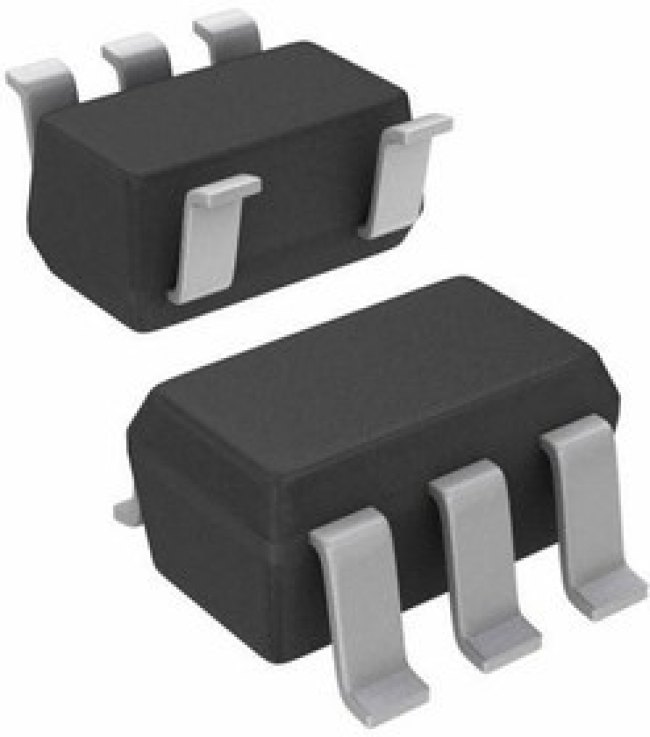

TLV2211IDBVR, 1 65kHz SOT-23-5 Operational Amplifier ROHS
Оставить отзыв
В избранноеВ сравнение
Артикул: TLV2211IDBVR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Операционный усилитель, 65 КГц
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:52:05 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Power Amplifier |
| amplifier type: | Low Power Amplifier |
| cmrr - common mode rejection ratio | 70 dB to 83 dB |
| cmrr - common mode rejection ratio: | 83 dB |
| dual supply voltage | +/-3 V |
| dual supply voltage: | +/-3 V |
| en - input voltage noise density | 72 nV/sqrt Hz |
| en - input voltage noise density: | 21 nV/sqrt Hz |
| factory pack quantity | 3000 |
| factory pack quantity: factory pack quantity: | 3000 |
| features | High Cload Drive |
| features: | High Cload Drive |
| gbp - gain bandwidth product | 65 kHz |
| gbp - gain bandwidth product: | 65 kHz |
| ib - input bias current | 60 pA |
| ib - input bias current: | 60 pA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.0006 pA/sqrt Hz |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage | +/-5 V |
| maximum dual supply voltage: | +/-5 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-1.35 V |
| minimum dual supply voltage: | +/-1.35 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| operating supply current | 13 uA |
| operating supply current: | 13 uA |
| operating supply voltage | 2.7 V to 10 V, +/-1.35 V to+/-5 V |
| operating supply voltage: | 2.7 V to 10 V, +/-1.35 V to+/-5 V |
| output current per channel | 50 mA |
| output current per channel: | 10 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package / case | SOT-23-5 |
| package / case: | SOT-23-5 |
| packaging | Cut Tape or Reel |
| партномер | 8017593701 |
| pd - power dissipation | 150 mW |
| pd - power dissipation: | 150 mW |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type | Op Amps-Operational Amplifiers |
| product type: | Op Amps-Operational Amplifiers |
| series | TLV2211 |
| series: | TLV2211 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| sr - slew rate | 0.025 V/us |
| sr - slew rate: | 25 mV/us |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 10 V |
| supply voltage - max: | 10 V |
| supply voltage - min | 2.7 V |
| supply voltage - min: | 2.7 V |
| technology | LinCMOS |
| technology: | LinCMOS |
| vcm - common mode voltage | Negative Rail to Positive Rail-1 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1 V |
| вес, г | 0.04 |
| voltage gain db | 118.06 dB |
| voltage gain db: | 118.06 dB |
| vos - input offset voltage | 3 mV |
| vos - input offset voltage: | 3 mV |
