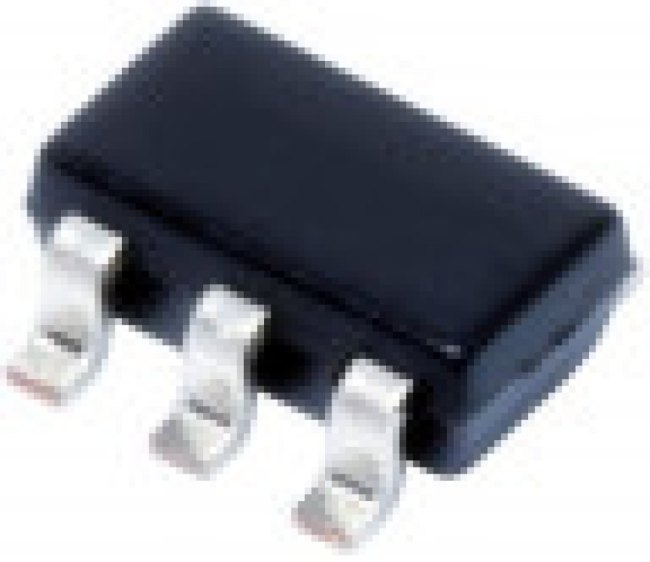

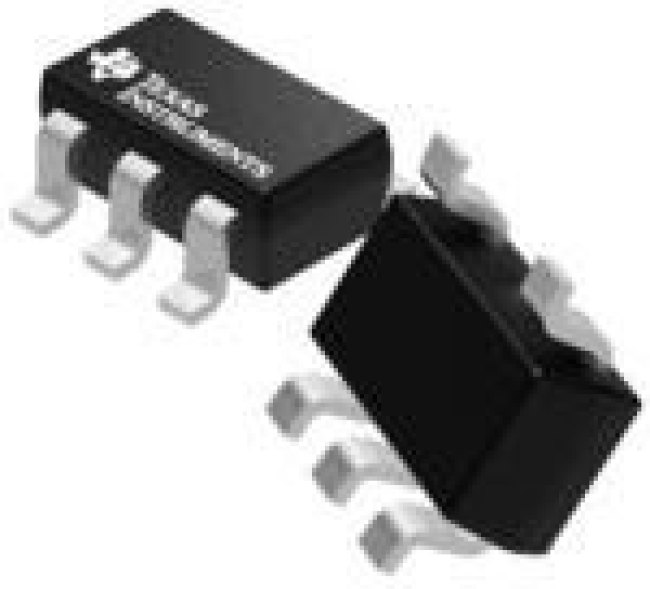

TLV172IDBVR, 1 10MHz SOT-23-5 Operational Amplifier
Оставить отзыв
В избранноеВ сравнение
Артикул: TLV172IDBVR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Single Low Power Amplifier R-R O/P ±18V/36V 5-Pin SOT-23 T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:52:05 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Power Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 116 dB |
| eccn (us) | ear99 |
| en - input voltage noise density: | 9 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 3000 |
| features: | Cost Optimized, EMI Hardened, Small Size |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current: | 10 pA |
| input type: | Differential |
| in - input noise current density: | 1.6 fA/sqrt Hz |
| ios - input offset current: | 2 pA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Power Amplifier |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input offset current (ua) | ±0.000002(Typ)@±18V |
| maximum input offset voltage (mv) | 1.7@±18V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum quiescent current (ma) | 2.3@±18V@-40C to 125C |
| maximum single supply voltage (v) | 36 |
| minimum cmrr (db) | 94 |
| minimum cmrr range (db) | 90 to 95 |
| minimum dual supply voltage: | +/-2.25 V |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum psrr (db) | 100 |
| minimum single supply voltage (v) | 04.05.2024 |
| moisture sensitive: | Yes |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 1.6 mA |
| output current per channel: | 75 mA |
| output type: | Rail-to-Rail |
| package / case: | SOT-23-5 |
| packaging | Tape and Reel |
| партномер | 8017599142 |
| part status | active |
| pcb changed | 5 |
| pin count | 5 |
| power supply type | Single|Dual |
| ppap | No |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio: | 120 dB |
| rail to rail | Rail to Rail Output |
| series: | TLV172 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 10 V/us |
| standard package name | SOT |
| subcategory: | Amplifier ICs |
| supplier package | SOT-23 |
| supply voltage - max: | 36 V |
| supply voltage - min: | 4.5 V |
| thd plus noise: | 0.0002% |
| type | Low Power Amplifier |
| typical dual supply voltage (v) | ±5|±9|±12|±15|±3 |
| typical gain bandwidth product (mhz) | 10 |
| typical input bias current (ua) | 0.00001@±18V |
| typical input noise voltage density (nv/rthz) | 14@±18V |
| typical noninverting input current noise density (pa/rthz) | 0.0016@±18V |
| typical settling time (ns) | 3200 |
| typical slew rate (v/us) | 10@±18V |
| typical voltage gain (db) | 115 |
| вес, г | 0.04 |
| vos - input offset voltage: | 1.7 mV |
