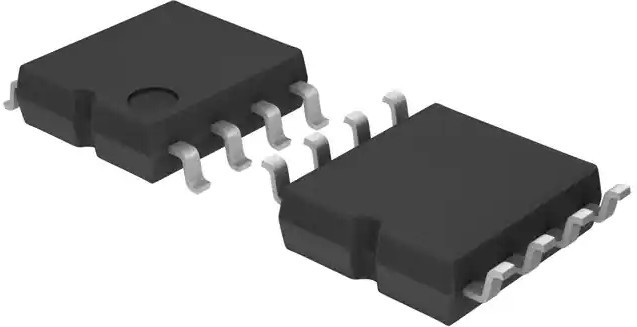

TLR342F-GE2, Operational Amplifiers - Op Amps Ind 2Ch 1.8-5.5V Ground Sense

Оставить отзыв
В избранноеВ сравнение
Артикул: TLR342F-GE2
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsStandard Operational AmplifiersROHM Standard Operational Amplifiers are designed to meet virtually any need, ranging from bipolar and CMOS types to ground sense (single supply) models, dual supply units, and ICs featuring a variety of features, including low noise, low saturation, low current consumption, and input/output full swing. These devices offer high-gain, low power consumption, and a wide operating voltage range of 3V to 36V (single...
Основные
вес, г0.37
moisture sensitivity level (msl)1 (Unlimited)
mounting typeSurface Mount
operating temperature-40В°C ~ 85В°C
230
+
Бонус: 4.6 !
Бонусная программа
Итого: 230
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Semiconductors\Amplifier ICs\Operational Amplifiers - Op AmpsStandard Operational AmplifiersROHM Standard Operational Amplifiers are designed to meet virtually any need, ranging from bipolar and CMOS types to ground sense (single supply) models, dual supply units, and ICs featuring a variety of features, including low noise, low saturation, low current consumption, and input/output full swing. These devices offer high-gain, low power consumption, and a wide operating voltage range of 3V to 36V (single power supply).
Основные
вес, г0.37
moisture sensitivity level (msl)1 (Unlimited)
mounting typeSurface Mount
operating temperature-40В°C ~ 85В°C
packageTape & Reel (TR)Cut Tape (CT)Digi-ReelВ®
package / case8-SOIC (0.173"", 4.40mm Width)
rohs statusROHS3 Compliant
eccnEAR99
htsus8542.33.0001
supplier device package8-SOP
base product numberTLR342 ->
current - supply150ВµA
output typeRail-to-Rail
factory pack quantity: factory pack quantity:2500
manufacturer:ROHM Semiconductor
maximum operating temperature:+85 C
minimum operating temperature:-40 C
mounting style:SMD/SMT
product category:Operational Amplifiers-Op Amps
product type:Op Amps-Operational Amplifiers
product:Operational Amplifiers
series:TLR342F
subcategory:Amplifier ICs
packaging:Reel, Cut Tape, MouseReel
part # aliases:TLR342F
Вес и габариты
operating supply current:150 uA
package/case:SOP-8
number of circuits2
supply voltage - max:5.5 V
supply voltage - min:1.8 V
number of channels:2 Channel
input type:Differential
amplifier typeCMOS
simulation modelshttp://rohmfs.rohm.com/en/products/library/spice/i
shutdown:No Shutdown
technology:MOSFET
current - input bias1pA
current - output / channel120mA
gain bandwidth product2.3MHz
slew rate1.2V/Вµs
voltage - input offset300ВµV
voltage - supply, single/dual (в±)1.8V ~ 5.5V
ib - input bias current:1 pA
psrr - power supply rejection ratio:95 dB
thd plus noise:0.012%
gbp - gain bandwidth product:2.3 MHz
vos - input offset voltage:300 uV
cmrr - common mode rejection ratio:75 dB
amplifier type:Ground Sense Operational Amplifier
en - input voltage noise density:33 nV/sqrt Hz
output current per channel:100 mA
sr - slew rate:1.2 V/us
ios - input offset current:1 pA
