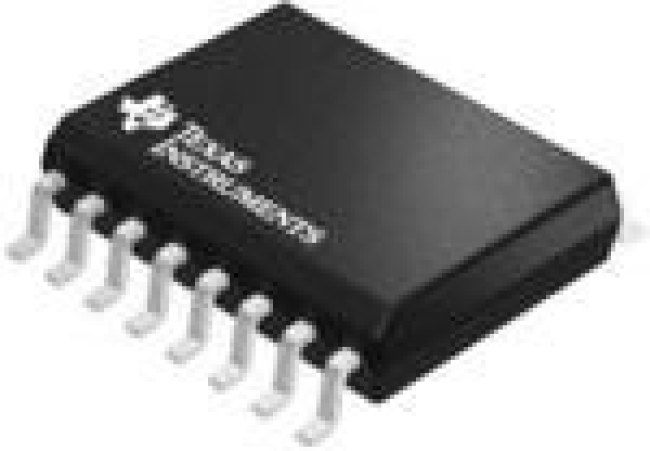

TLE2024CDW
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементQUAD OP-AMP, 1200 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, 16 Pin Plastic SOP
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 23:03:39 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Offset Voltage Amplifier |
| amplifier type: | Low Offset Voltage Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 80 dB to 90 dB |
| cmrr - common mode rejection ratio: | 102 dB |
| dual supply voltage | +/-3 V, +/-5 V, +/-9 V |
| dual supply voltage: | +/-3 V, +/-5 V, +/-9 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 21 nV/sqrt Hz |
| en - input voltage noise density: | 19 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 40 |
| factory pack quantity: factory pack quantity: | 40 |
| gbp - gain bandwidth product | 1.7 MHz |
| gbp - gain bandwidth product: | 2.8 MHz |
| height | 2.35 mm |
| ib - input bias current | 70 nA |
| ib - input bias current: | 50 nA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.1 pA/sqrt Hz |
| in - input noise current density: | 0.1 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 10.28 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Offset Voltage Amplifier |
| maximum dual supply voltage | +/-20 V |
| maximum dual supply voltage: | +/-20 V |
| maximum dual supply voltage (v) | ±20 |
| maximum input bias current (ua) | 0.07@5V |
| maximum input offset current (ua) | 0.006@5V |
| maximum input offset voltage (mv) | 1.1@5V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 1025 |
| maximum quiescent current (ma) | 1.2@5V |
| maximum single supply voltage (v) | 40 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage | +/-2 V |
| minimum dual supply voltage: | +/-2 V |
| minimum dual supply voltage (v) | ±2 |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | 0 |
| minimum single supply voltage (v) | 4 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| operating supply current | 200 uA |
| operating supply current: | 1.05 mA |
| operating supply voltage | 4 V to 40 V, +/-2 V to+/-20 V |
| operating supply voltage: | 4 V to 40 V, +/-2 V to+/-20 V |
| output current per channel: | 40 mA |
| package / case | SOIC-16 |
| package / case: | SOIC-16 |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8004530805 |
| part status | active |
| pcb changed | 16 |
| pd - power dissipation | 1025 mW |
| pd - power dissipation: | 1025 mW |
| pin count | 16 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCOM |
| product | Precision Amplifiers |
| product: | Precision Amplifiers |
| product category | Precision Amplifiers |
| product category: | Precision Amplifiers |
| product type: | Precision Amplifiers |
| rohs | Details |
| series | TLE2024 |
| series: | TLE2024 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 0.5 V/us |
| sr - slew rate: | 500 mV/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 40 V |
| supply voltage - max: | 40 V |
| supply voltage - min | 4 V |
| supply voltage - min: | 4 V |
| technology | BiCOM |
| technology: | BiCOM |
| type | Low Offset Voltage Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12|±15|±18 |
| typical gain bandwidth product (mhz) | 01.07.2024 |
| typical input noise voltage density (nv/rthz) | 21@5V |
| typical noninverting input current noise density (pa/rthz) | 0.1@5V |
| typical output current (ma) | 40(Max) |
| typical slew rate (v/us) | 0.5@5V |
| typical voltage gain (db) | 123.52 |
| unit weight | 0.014829 oz |
| vcm - common mode voltage | Negative Rail to Positive Rail-1.5 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1.5 V |
| вес, г | 2.722 |
| voltage gain db | 123.52 dB |
| voltage gain db: | 123.52 dB |
| vos - input offset voltage | 1.1 mV |
| vos - input offset voltage: | 1 mV |
| width | 7.52 mm |
