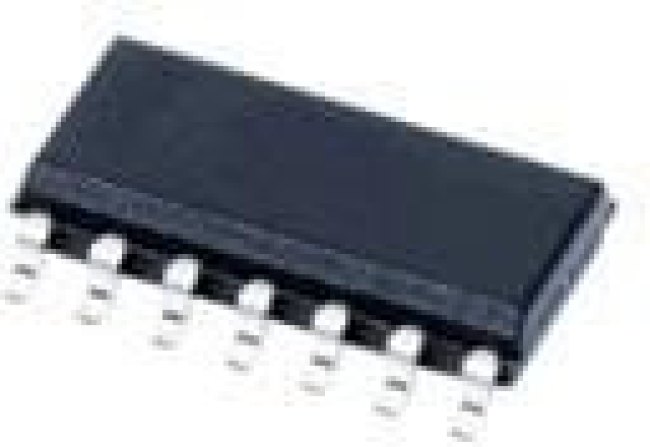

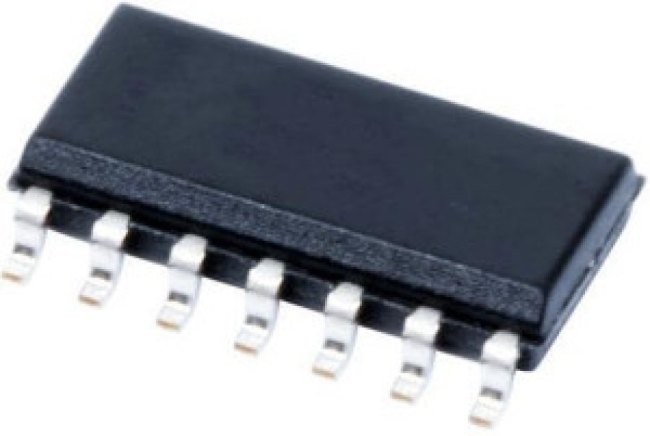

TLC2274AIDR, Op Amp Quad Low Noise Amplifier R-R O/P ±8V/16V 14-Pin SOIC T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: TLC2274AIDR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - IC > Linear > Amplifier - Operational
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:08:13 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | Low Noise Amplifier |
| amplifier type: | Low Noise Amplifier |
| cmrr - common mode rejection ratio | 70 dB to 75 dB |
| cmrr - common mode rejection ratio: | 75 dB |
| dual supply voltage | +/-3 V, +/-5 V |
| dual supply voltage: | +/-3 V, +/-5 V |
| en - input voltage noise density | 50 nV/sqrt Hz |
| en - input voltage noise density: | 9 nV/sqrt Hz |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 2500 |
| features | High Cload Drive |
| features: | High Cload Drive |
| gbp - gain bandwidth product | 2.18 MHz |
| gbp - gain bandwidth product: | 2.25 MHz |
| ib - input bias current | 60 pA |
| ib - input bias current: | 1 pA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.0006 pA/sqrt Hz |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage | +/-8 V |
| maximum dual supply voltage: | +/-8 V |
| maximum operating temperature | +125 C |
| maximum operating temperature: | +125 C |
| minimum dual supply voltage | +/-2.2 V |
| minimum dual supply voltage: | +/-2.2 V |
| minimum operating temperature | -55 C |
| minimum operating temperature: | -55 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| operating supply current | 1.1 mA |
| operating supply current: | 4.8 mA |
| operating supply voltage | 4.4 V to 16 V, +/-2.2 V to+/-8 V |
| operating supply voltage: | 4.4 V to 16 V, +/-2.2 V to+/-8 V |
| output current per channel | 50 mA |
| output current per channel: | 50 mA |
| output type | Rail-to-Rail |
| output type: | Rail-to-Rail |
| package / case | SOIC-14 |
| package / case: | SOIC-14 |
| packaging | Cut Tape or Reel |
| партномер | 8021586900 |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Precision Amplifiers |
| product type | Op Amps-Operational Amplifiers |
| product type: | Precision Amplifiers |
| series | TLC2274A |
| series: | TLC2274A |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| sr - slew rate | 3.6 V/us |
| sr - slew rate: | 3.6 V/us |
| subcategory | Amplifier ICs |
| subcategory: | Amplifier ICs |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 16 V |
| supply voltage - max: | 16 V |
| supply voltage - min | 4.4 V |
| supply voltage - min: | 4.4 V |
| technology | LinCMOS |
| technology: | LinCMOS |
| tradename | LinCMOS |
| tradename: | LinCMOS |
| vcm - common mode voltage | Negative Rail to Positive Rail-1 V |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1 V |
| вес, г | 0.5 |
| voltage gain db | 104.86 dB |
| voltage gain db: | 104.86 dB |
| vos - input offset voltage | 0.95 mV |
| vos - input offset voltage: | 300 uV |
