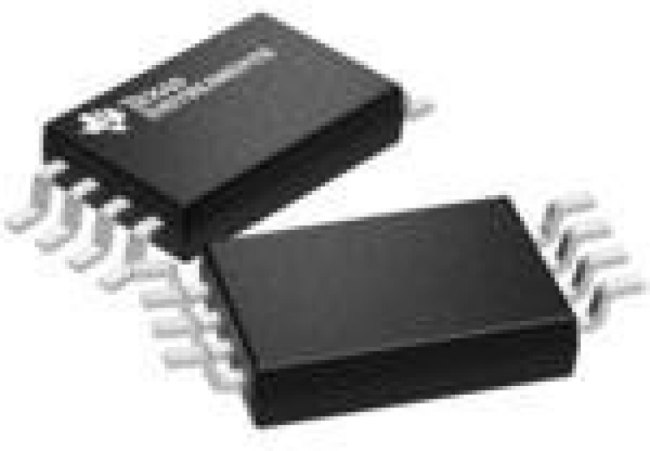

TLC2262AIPWR
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Op Amp Dual Low Noise Amplifier R-R O/P ±8V/16V 8-Pin TSSOP T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:30:58 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Low Noise Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 83 dB |
| dual supply voltage: | +/-3 V, +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 12 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2000 |
| features: | High Cload Drive |
| gbp - gain bandwidth product: | 710 kHz |
| ib - input bias current: | 150 pA |
| input type: | Rail-to-Rail |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Low Noise Amplifier |
| maximum dual supply voltage: | +/-8 V |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.0008@±2.5V@-40C to 125C |
| maximum input offset current (ua) | 0.0000005(Typ)@±2.5V |
| maximum input offset voltage (mv) | 0.95@±2.5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 525 |
| maximum quiescent current (ma) | 0.5@5V |
| maximum single supply voltage (v) | 16 |
| minimum cmrr (db) | 70 |
| minimum cmrr range (db) | 70 to 71 |
| minimum dual supply voltage: | +/-2.2 V |
| minimum dual supply voltage (v) | ±2.2 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 04.04.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 400 uA |
| operating supply voltage: | 4.4 V to 16 V, +/-2.2 V to+/-8 V |
| output current per channel: | 2.2 mA |
| output type | CMOS |
| output type: | Rail-to-Rail |
| package / case: | TSSOP-8 |
| packaging | Tape and Reel |
| партномер | 8007526189 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 525 mW |
| pin count | 8 |
| power supply type | Dual|Single |
| ppap | No |
| process technology | LinCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | Rail to Rail Output |
| series: | TLC2262A |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 550 mV/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | TSSOP |
| supply type: | Single, Dual |
| supply voltage - max: | 16 V |
| supply voltage - min: | 4.4 V |
| technology: | LinCMOS |
| tradename: | LinCMOS |
| type | Low Noise Amplifier |
| typical dual supply voltage (v) | ±5|±3 |
| typical gain bandwidth product (mhz) | 0.82 |
| typical input bias current (ua) | 0.000001@±2.5V |
| typical input noise voltage density (nv/rthz) | 40@5V |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5V |
| typical output current (ma) | 50(Max) |
| typical settling time (ns) | 14100 |
| typical slew rate (v/us) | 0.55@5V |
| typical voltage gain (db) | 114.81 |
| vcm - common mode voltage: | Negative Rail to Positive Rail-1 V |
| voltage gain db: | 114.81 dB |
| vos - input offset voltage: | 950 uV |
