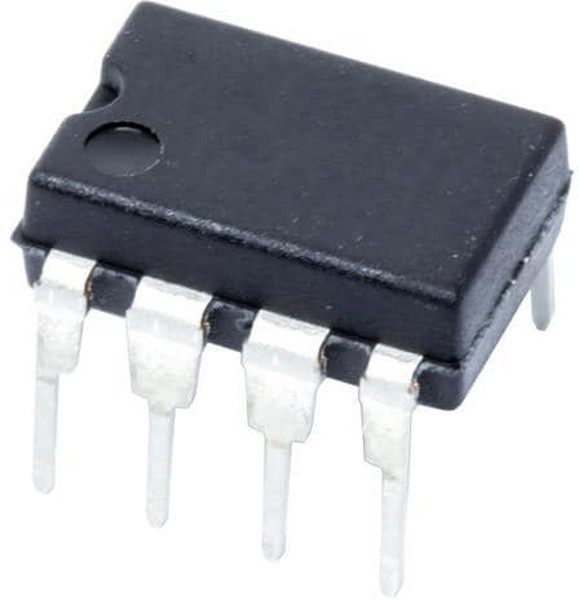

TLC2201IP, Операционный усилитель, 1 Усилитель, 1.9 МГц, 2.7 В/мкс, ± 2.3В до ± 8В, DIP, 8 вывод(-ов)

Полупроводники - Микросхемы\Усилители и Компараторы\Операционные Усилители - ОУThe TLC2201IP is a low noise precision Operational Amplifier with rail-to-rail output. The operational amplifier using Texas Instruments Advanced LinCMOS™ process. This device combines the noise performance of the lowest-noise JFET amplifier with the DC precision available previously only in bipolar amplifier. The advanced LinCMOS™ process uses silicon-gate technology to obtain input offset voltage stability with temperature and time that far exceeds that obtainable using metal-gate technology. In addition, this technology makes possible input impedance levels that meet or exceed levels offered by top-gate JFET and expensive dielectric-isolated devices. The combination of excellent DC and noise performance with a common-mode input voltage range that includes the negative rail makes this device an ideal choice for high-impedance, low-level signal-conditioning applications in either single-supply or split-supply configurations. • Common-mode input voltage range includes the negative rail• Fully specified for both single-supply and split-supply operation• 500µV Maximum low input offset voltage• 0.5µV/°C Typical excellent offset voltage stability with temperature• 1pA at TA=25°C Typical low input bias current
