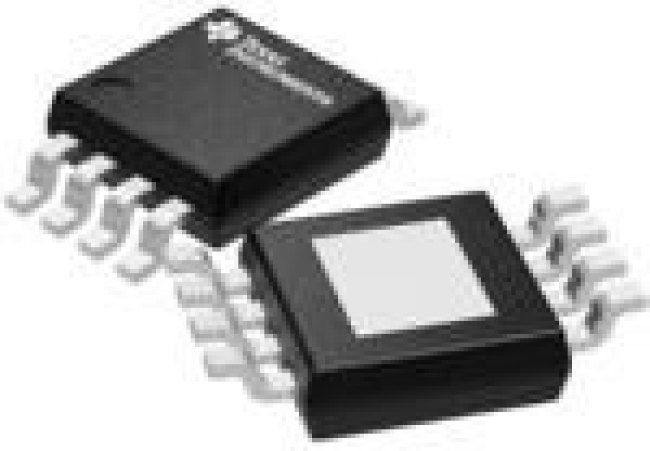

TLC072IDGNR, Op Amp Dual Wideband Amplifier ±8V/16V 8-Pin HVSSOP EP T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: TLC072IDGNR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Semiconductor - IC > Linear > Amplifier - OperationalOp Amp Dual Wideband Amplifier ±8V/16V 8-Pin HVSSOP EP T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 0:34:45 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type: | Wideband Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| dual supply voltage: | +/-3 V, +/-5 V |
| eccn (us) | ear99 |
| en - input voltage noise density: | 7 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 10 MHz |
| ib - input bias current: | 50 pA |
| in - input noise current density: | 0.0006 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | Wideband Amplifier |
| maximum dual supply voltage: | +/-8 V |
| maximum dual supply voltage (v) | ±8 |
| maximum input bias current (ua) | 0.00005@5V |
| maximum input offset current (ua) | 0.00005@5V |
| maximum input offset voltage (mv) | 1.9@5V |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum power dissipation (mw) | 2370 |
| maximum quiescent current (ma) | 5@5V |
| maximum single supply voltage (v) | 16 |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage: | +/-2.25 V |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 04.05.2024 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 2 Channel |
| number of channels per chip | 2 |
| operating supply current: | 1.9 mA |
| operating supply voltage: | 4.5 V to 16 V, +/-2.25 V to+/-8 V |
| output current per channel: | 57 mA |
| output type | CMOS |
| package / case: | MSOP-8 |
| packaging | Tape and Reel |
| партномер | 8021374602 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 2370 mW |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCMOS |
| product: | Operational Amplifiers |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| series: | TLC072 |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate: | 16 V/us |
| standard package name | SOP |
| subcategory: | Amplifier ICs |
| supplier package | HVSSOP EP |
| supplier temperature grade | Extended Industrial |
| supply type: | Single, Dual |
| supply voltage - max: | 16 V |
| supply voltage - min: | 4.5 V |
| technology: | BiCMOS |
| type | Wideband Amplifier |
| typical dual supply voltage (v) | ±3|±5 |
| typical gain bandwidth product (mhz) | 10 |
| typical high level output voltage (v) | 04.03.2024 |
| typical input bias current (ua) | 0.0000015@5V |
| typical input noise voltage density (nv/rthz) | 12@5V |
| typical low level output voltage (v) | 0.48 |
| typical noninverting input current noise density (pa/rthz) | 0.0006@5V |
| typical output current (ma) | 57@5V |
| typical output resistance (ohm) | 0.25 |
| typical settling time (ns) | 390 |
| typical slew rate (v/us) | 16@5V |
| typical voltage gain (db) | 120 |
| vcm - common mode voltage: | Negative Rail+0.5 V to Positive Rail-0.8 V |
| вес, г | 0.5 |
| voltage gain db: | 120 dB |
| vos - input offset voltage: | 1.9 mV |
