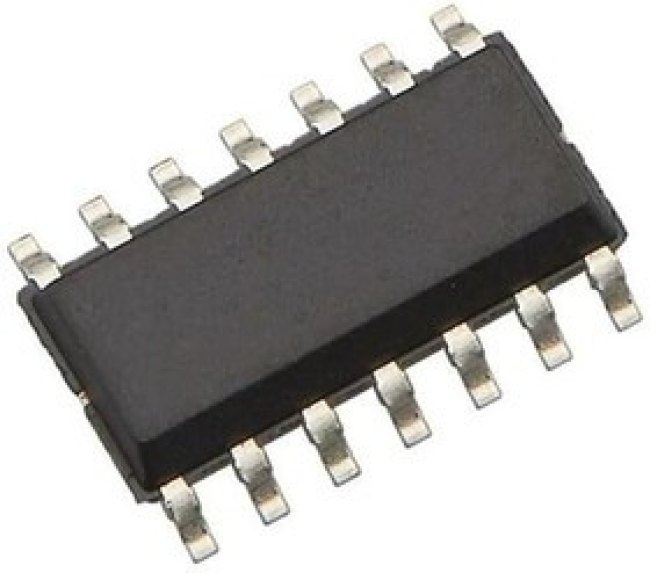

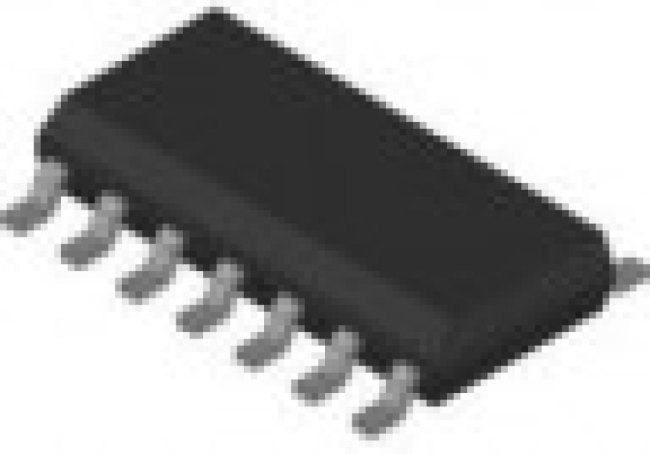

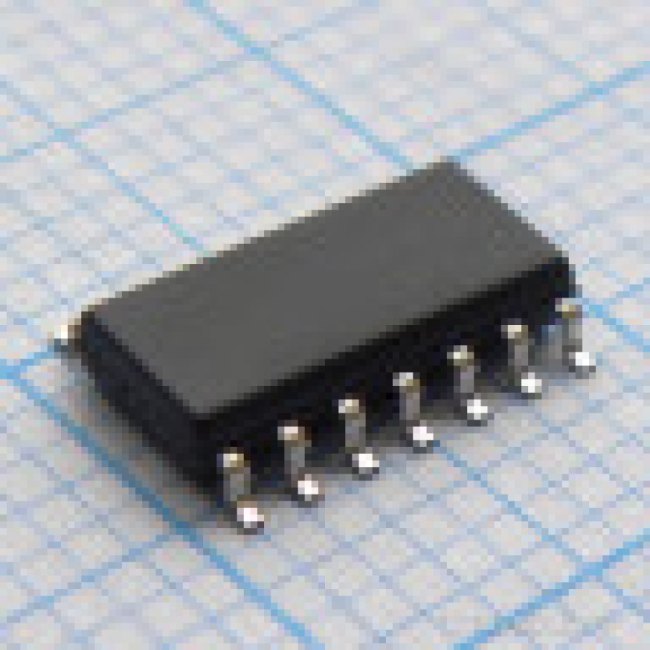

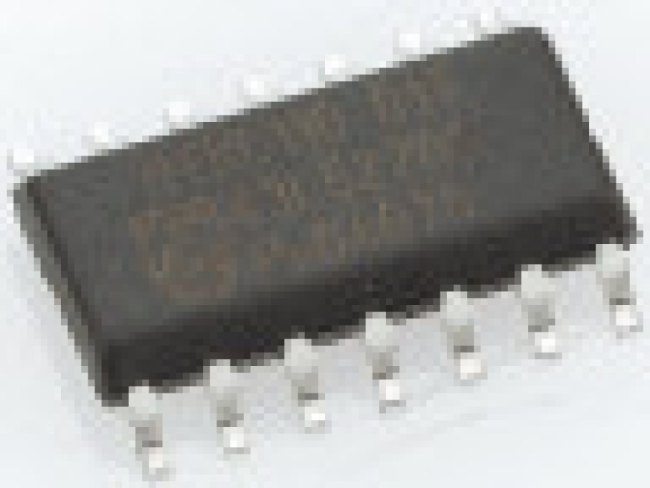

TL084IDT, IC: operational amplifier; 3MHz; Ch: 4; SO14; 6?36VDC; reel,tape
Оставить отзыв
В избранноеВ сравнение
Артикул: TL084IDT
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание IC: operational amplifier; 3MHz; Ch: 4; SO14; 6?36VDC; reel,tape Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
SMD
Кол-во каналов
4
Мин.напряжение питания, В
7
Макс.напряжение питания, В
36
| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 2:37:22 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | J-FET |
| amplifier type: | High Speed Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 80 dB |
| cmrr - common mode rejection ratio: | 86 dB |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 15 nV/sqrt Hz |
| en - input voltage noise density: | 15 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 2500 |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product | 4MHz |
| gbp - gain bandwidth product: | 4 MHz |
| height | 1.65 mm(Max) |
| ib - input bias current | 200 pA |
| ib - input bias current: | 200 pA |
| input offset voltage drift (uv/°c) | 10(Typ) |
| iq per channel (typ) | 1.4mA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| length | 8.75 mm(Max) |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±18 |
| maximum input bias current (ua) | 0.0002@±15V |
| maximum input offset current (ua) | 0.0001@±15V |
| maximum input offset voltage (mv) | 10@±15V |
| maximum operating temperature | 105В°C |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum power dissipation (mw) | 680 |
| maximum quiescent current (ma) | 2.5@±15V |
| minimum cmrr (db) | 80 |
| minimum cmrr range (db) | 80 to 85 |
| minimum dual supply voltage | +/-3 V |
| minimum dual supply voltage: | +/-3 V |
| minimum dual supply voltage (v) | ±3 |
| minimum operating temperature | -40В°C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of channels | 4 Channel |
| number of channels: | 4 Channel |
| number of channels per chip | 4 |
| number of circuits | 4 |
| operating supply current | 2.5 mA |
| operating supply current: | 2.5 mA |
| operating supply voltage | 6 V to 36 V, +/-3 V to+/-18 V |
| operating supply voltage: | 6 V to 36 V, +/-3 V to+/-18 V |
| output current per channel | 40 mA |
| output current per channel: | 40 mA |
| package / case | SO-14 |
| package / case: | SOIC-14 |
| package type | SOIC |
| packaging | Tape and Reel |
| партномер | 8014886815 |
| part status | active |
| pcb changed | 14 |
| pd - power dissipation | 680 mW |
| pd - power dissipation: | 680 mW |
| pin count | 14 |
| power supply type | Dual |
| ppap | No |
| process technology | BiFET |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| psrr - power supply rejection ratio | 80 dB |
| psrr - power supply rejection ratio: | 80 dB |
| rail to rail | No |
| rohs | Details |
| series | TL084 |
| series: | TL084I |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 16 V/us |
| sr - slew rate: | 16 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 36V, В±3V |
| supply voltage - max: | 36 V, +/-18 V |
| supply voltage - min | 6V |
| supply voltage - min: | 6 V, +/-3 V |
| technology | BiFET |
| technology: | BiFET |
| type | High Speed Amplifier |
| typical dual supply voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| typical dual supply voltage (v) | ±5|±9|±12|±15 |
| typical gain bandwidth product | 4MHz |
| typical gain bandwidth product (mhz) | 4 |
| typical input noise voltage density (nv/rthz) | 15@±15V |
| typical input voltage noise density | 15nV/√Hz |
| typical slew rate | 16V/µs |
| typical slew rate (v/us) | 16@±15V |
| typical voltage gain | 106 dB |
| typical voltage gain (db) | 106.02 |
| вес, г | 0.18 |
| voltage gain db | 106.02 dB |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage | 10 mV |
| vos - input offset voltage: | 10 mV |
| width | 4mm |
