| Информация о производителе | |
| Производитель | STMicroelectronics |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:51:18 |
| Бренд | STMicroelectronics |
| Вес и габариты | |
| amplifier type | General Purpose Amplifier |
| amplifier type: | General Purpose Amplifier |
| cmrr - common mode rejection ratio | 80 dB |
| cmrr - common mode rejection ratio: | 86 dB |
| диапазон напряжения питания | 6В до 36В, ±3В до±18В |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| en - input voltage noise density | 15 nV/sqrt Hz |
| en - input voltage noise density: | 15 nV/sqrt Hz |
| factory pack quantity | 4000 |
| factory pack quantity: factory pack quantity: | 4000 |
| gbp - gain bandwidth product | 4 MHz |
| gbp - gain bandwidth product: | 4 MHz |
| height | 1 mm |
| ib - input bias current | 200 pA |
| ib - input bias current: | 200 pA |
| категория | Электронные компоненты/Микросхемы |
| количество усилителей | 2 Усилителя |
| количество выводов | 8вывод(-ов) |
| length | 3 mm |
| максимальная рабочая температура | 105°C |
| manufacturer | STMicroelectronics |
| manufacturer: | STMicroelectronics |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage: | +/-18 V |
| maximum operating temperature | +105 C |
| maximum operating temperature: | +105 C |
| минимальная рабочая температура | -40°C |
| minimum dual supply voltage | +/-3 V |
| minimum dual supply voltage: | +/-3 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| mounting style | SMD/SMT |
| mounting style: | SMD/SMT |
| number of channels | 2 Channel |
| number of channels: | 2 Channel |
| operating supply current | 2.5 mA |
| operating supply current: | 2.5 mA |
| operating supply voltage | 6 V to 36 V, +/-3 V to+/-18 V |
| operating supply voltage: | 6 V to 36 V, +/-3 V to+/-18 V |
| output current per channel | 40 mA |
| output current per channel: | 40 mA |

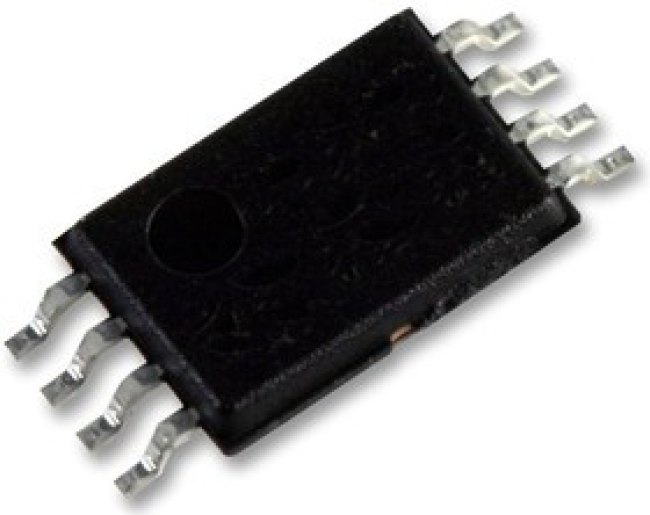

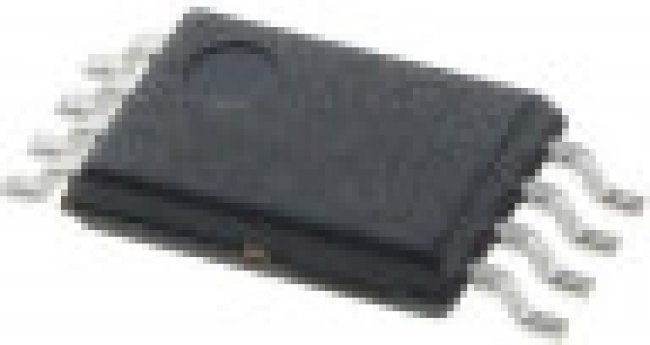

| package / case | TSSOP-8 |
| package/case: | TSSOP-8 |
| packaging | Reel |
| партномер | 8014888570 |
| pd - power dissipation | 680 mW |
| pd - power dissipation: | 680 mW |
| полоса пропускания | 4МГц |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rohs | Details |
| series | TL082 |
| series: | TL082 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| скорость нарастания | 16В/мкс |
| sr - slew rate | 16 V/us |
| sr - slew rate: | 16 V/us |
| стиль корпуса усилителя | TSSOP |
| subcategory: | Amplifier ICs |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 36 V |
| supply voltage - max: | 36 V, +/-18 V |
| supply voltage - min | 6 V |
| supply voltage - min: | 6 V, +/-3 V |
| technology | BiFET |
| technology: | BiFET |
| уровень чувствительности к влажности (msl) | MSL 3-168 часов |
| вес, г | 0.1 |
| voltage gain db | 106.02 dB |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage | 10 mV |
| vos - input offset voltage: | 10 mV |
| width | 4.4 mm |
