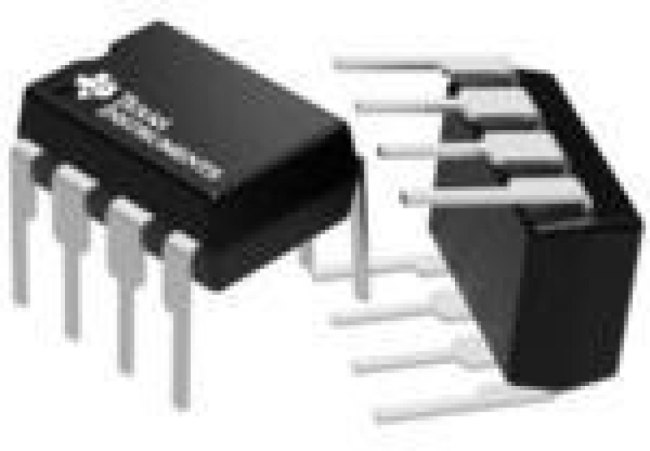

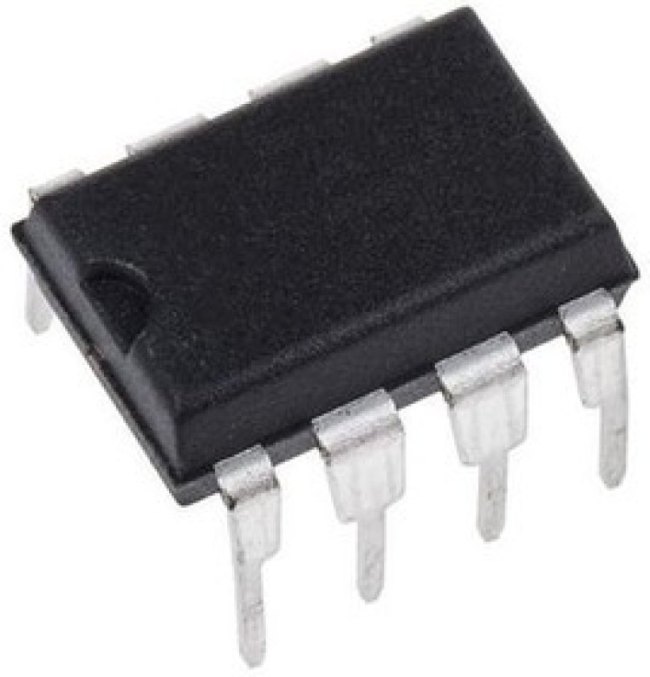

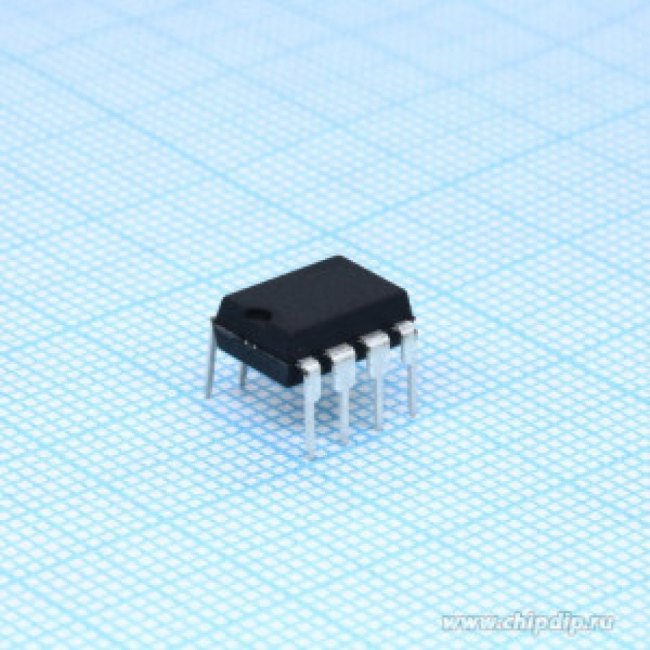

TL081IP, IC: operational amplifier; 3MHz; Ch: 1; DIP8; ±5?15VDC; tube
Оставить отзыв
В избранноеВ сравнение
Артикул: TL081IP
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Описание IC: operational amplifier; 3MHz; Ch: 1; DIP8; ±5?15VDC; tube Характеристики Категория
Микросхема
Тип
операционный усилитель
Монтаж
THT
Кол-во каналов
1
Мин.напряжение питания, В
-15
Макс.напряжение питания, В
15
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 1:57:19 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | General Purpose Amplifier |
| amplifier type: | General Purpose Amplifier |
| automotive | No |
| cmrr - common mode rejection ratio | 70 dB |
| cmrr - common mode rejection ratio: | 86 dB |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn (us) | ear99 |
| en - input voltage noise density | 18 nV/sqrt Hz |
| en - input voltage noise density: | 18 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity | 50 |
| factory pack quantity: factory pack quantity: | 1450 |
| gbp - gain bandwidth product | 3 MHz |
| gbp - gain bandwidth product: | 3 MHz |
| height | 4.57 mm |
| ib - input bias current | 200 pA |
| ib - input bias current: | 200 pA |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.01 pA/sqrt Hz |
| in - input noise current density: | 0.01 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Through Hole |
| length | 9.81 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| manufacturer type | General Purpose Amplifier |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage: | +/-18 V |
| maximum dual supply voltage (v) | ±20 |
| maximum input bias current (ua) | 0.0002@±15V |
| maximum input offset current (ua) | 0.0001@±15V |
| maximum input offset voltage (mv) | 6@±15V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum quiescent current (ma) | 2.8@±15V |
| maximum single supply voltage (v) | 40 |
| minimum cmrr (db) | 75 |
| minimum cmrr range (db) | 75 to 80 |
| minimum dual supply voltage | +/-3.5 V |
| minimum dual supply voltage: | +/-3.5 V |
| minimum dual supply voltage (v) | ±2.25 |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| minimum single supply voltage (v) | 04.05.2024 |
| mounting | Through Hole |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current | 2.8 mA |
| operating supply current: | 1.4 mA |
| operating supply voltage | 7 V to 36 V, +/-3.5 V to+/-18 V |
| operating supply voltage: | 7 V to 36 V, +/-3.5 V to+/-18 V |
| output current per channel: | 10 mA |
| package / case | PDIP-8 |
| package / case: | PDIP-8 |
| package type | PDIP |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8017712423 |
| part status | active |
| pcb changed | 8 |
| pin count | 8 |
| power supply type | Dual |
| ppap | No |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rohs | Details |
| series | TL081 |
| series: | TL081 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| shut down support | No |
| sr - slew rate | 13 V/us |
| sr - slew rate: | 13 V/us |
| standard package name | DIP |
| subcategory: | Amplifier ICs |
| supplier package | PDIP |
| supply type | Single, Dual |
| supply type: | Single, Dual |
| supply voltage - max | 36 V |
| supply voltage - max: | 30 V |
| supply voltage - min | 7 V |
| supply voltage - min: | 7 V |
| technology | BiFET |
| technology: | BiFET |
| type | General Purpose Amplifier |
| typical dual supply voltage (v) | ±3|±5|±9|±12|±15|±18 |
| typical gain bandwidth product | 3MHz |
| typical gain bandwidth product (mhz) | 3 |
| typical input noise voltage density (nv/rthz) | 18@±15V |
| typical noninverting input current noise density (pa/rthz) | 0.01@±15V |
| typical single supply voltage | 5 V |
| typical slew rate (v/us) | 13@±15V |
| typical voltage gain (db) | 106.02 |
| unit weight | 0.015535 oz |
| vcm - common mode voltage | Negative Rail+4 V to Positive Rail-4 V |
| vcm - common mode voltage: | Negative Rail+4 V to Positive Rail-4 V |
| вес, г | 01.03.2024 |
| voltage gain db | 106.02 dB |
| voltage gain db: | 106.02 dB |
| vos - input offset voltage | 6 mV |
| vos - input offset voltage: | 6 mV |
| width | 6.35 mm |
