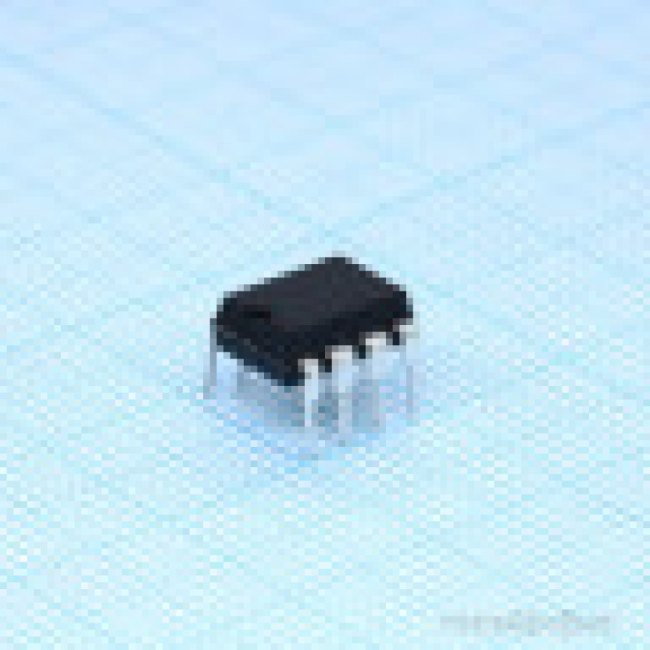

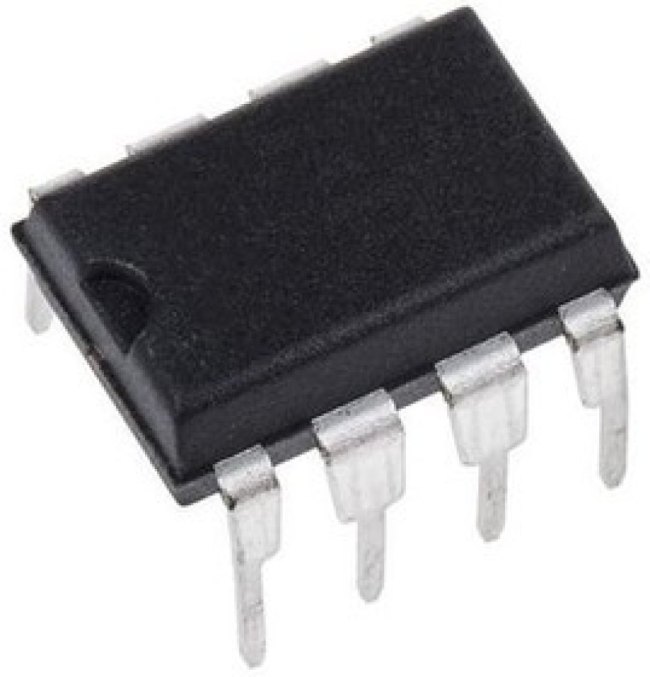

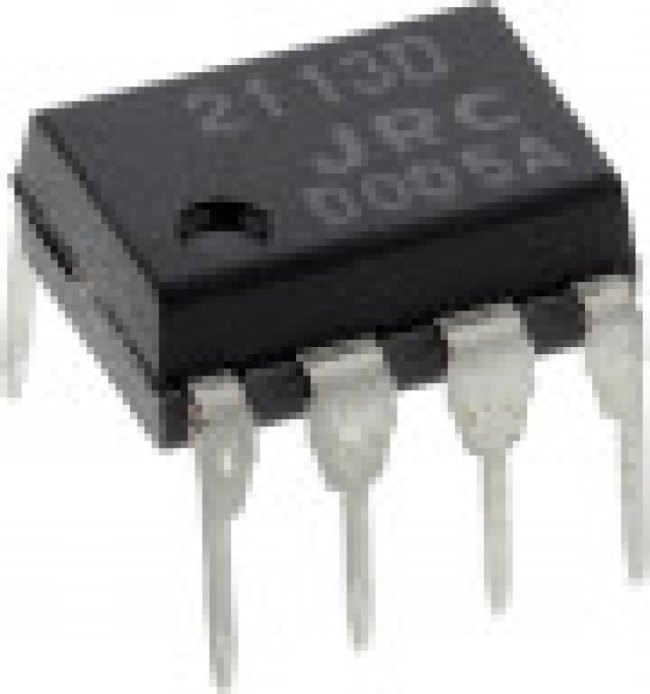

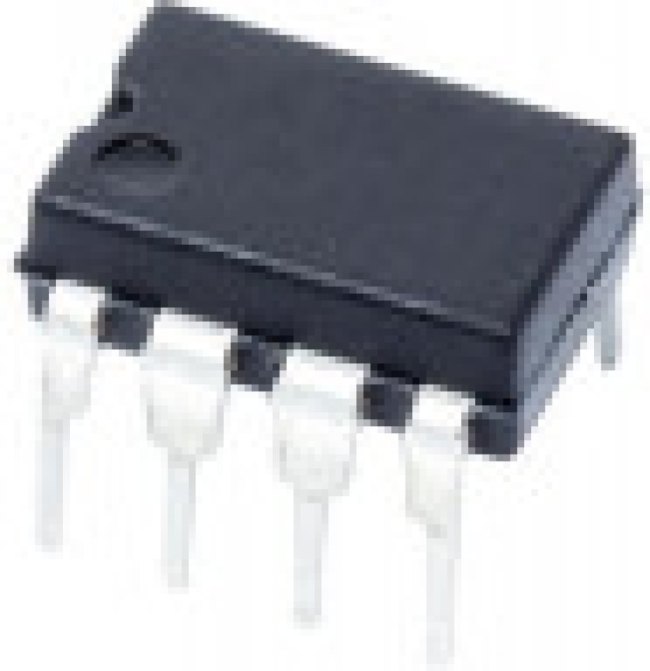

TL071IP, Операционный усилитель общего применения +15В
Оставить отзыв
В избранноеВ сравнение
Артикул: TL071IP
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Микросхемы / Усилители и компараторы / Операционные усилителиОперационный усилитель общего применения +15В
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 3:16:49 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| amplifier type | J-FET |
| amplifier type: | Low Noise Amplifier |
| base product number | TL071 -> |
| cmrr - common mode rejection ratio | 70 dB to 100 dB |
| cmrr - common mode rejection ratio: | 100 dB |
| current - input bias | 65pA |
| current - supply | 1.4mA |
| dual supply voltage | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| dual supply voltage: | +/-5 V, +/-9 V, +/-12 V, +/-15 V |
| eccn | EAR99 |
| en - input voltage noise density | 18 nV/sqrt Hz |
| en - input voltage noise density: | 18 nV/sqrt Hz |
| factory pack quantity | 50 |
| factory pack quantity: factory pack quantity: | 1800 |
| gain bandwidth product | 3MHz |
| gbp - gain bandwidth product | 3 MHz |
| gbp - gain bandwidth product: | 3 MHz |
| height | 4.57 mm |
| htsus | 8542.33.0001 |
| ib - input bias current | 200 pA |
| ib - input bias current: | 200 pA |
| input type | Rail-to-Rail |
| input type: | Rail-to-Rail |
| in - input noise current density | 0.01 pA/sqrt Hz |
| in - input noise current density: | 0.01 pA/sqrt Hz |
| категория | Электронные компоненты/Микросхемы |
| Корпус | DIP-8 |
| length | 9.81 mm |
| manufacturer | Texas Instruments |
| manufacturer: | Texas Instruments |
| maximum dual supply voltage | +/-18 V |
| maximum dual supply voltage: | +/-18 V |
| maximum operating temperature | +85 C |
| maximum operating temperature: | +85 C |
| minimum dual supply voltage | +/-3.5 V |
| minimum dual supply voltage: | +/-3.5 V |
| minimum operating temperature | -40 C |
| minimum operating temperature: | -40 C |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of channels | 1 Channel |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| number of circuits | 1 |
| operating supply current | 1.4 mA |
| operating supply current: | 1.4 mA |
| operating supply voltage | +/-3.5 V to+/-18 V |
| operating supply voltage: | +/-3.5 V to+/-18 V |
| operating temperature | -40В°C ~ 85В°C |
| output current per channel: | 10 mA |
| package | Tube |
| package / case | 8-DIP (0.300"", 7.62mm) |
| package / case: | PDIP-8 |
| package type | PDIP |
| packaging | Tube |
| packaging: | Tube |
| партномер | 8000011056 |
| pin count | 8 |
| power supply type | Dual |
| product | Operational Amplifiers |
| product: | Operational Amplifiers |
| product category | Operational Amplifiers-Op Amps |
| product category: | Operational Amplifiers-Op Amps |
| product type: | Op Amps-Operational Amplifiers |
| rail to rail | No |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | TL071 |
| series: | TL071 |
| shutdown | No Shutdown |
| shutdown: | No Shutdown |
| slew rate | 13V/Вµs |
| sr - slew rate | 13 V/us |
| sr - slew rate: | 13 V/us |
| subcategory: | Amplifier ICs |
| supplier device package | 8-PDIP |
| supply type | Dual |
| supply type: | Dual |
| supply voltage - max | 36 V |
| supply voltage - max: | 30 V |
| supply voltage - min | 7 V |
| supply voltage - min: | 7 V |
| technology | BiFET |
| technology: | BiFET |
| typical dual supply voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| typical gain bandwidth product | 3MHz |
| typical input voltage noise density | 18nV/√Hz |
| typical slew rate | 13V/µs |
| typical voltage gain | 106 dB |
| unit weight | 0.015535 oz |
| vcm - common mode voltage | Negative Rail+4 V to Positive Rail-4 V |
| vcm - common mode voltage: | Negative Rail+4 V to Positive Rail-4 V |
| вес, г | 01.03.2024 |
| voltage gain db | 106.02 dB |
| voltage gain db: | 106.02 dB |
| voltage - input offset | 3mV |
| voltage - supply, single/dual (в±) | В±5V ~ 15V |
| vos - input offset voltage | 6 mV |
| vos - input offset voltage: | 6 mV |
| width | 6.35 mm |
