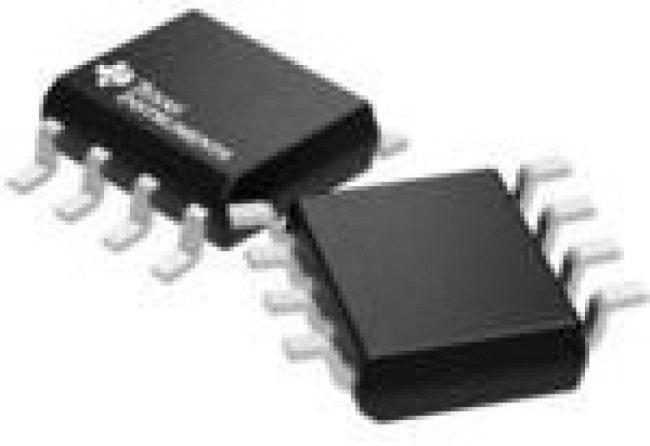

THS4031CDR, Op Amp Single High Speed Amplifier ±16V/32V 8-Pin SOIC T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: THS4031CDR
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Amplifiers\Amplifiers and Comparators\Operational Amplifiers (Op Amps)Op Amp Single High Speed Amplifier ±16V/32V 8-Pin SOIC T/R
| Информация о производителе | |
| Производитель | Texas Instruments |
| Основные | |
| Дата загрузки | 05.05.2024 |
| Время загрузки | 22:43:24 |
| Бренд | Texas Instruments |
| Вес и габариты | |
| automotive | No |
| cmrr - common mode rejection ratio: | 95 dB |
| development kit: | THS4031EVM |
| eccn (us) | ear99 |
| en - input voltage noise density: | 1.6 nV/sqrt Hz |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 2500 |
| gbp - gain bandwidth product: | 120 MHz |
| ib - input bias current: | 6 uA |
| категория | Электронные компоненты/Микросхемы |
| lead shape | Gull-wing |
| manufacturer: | Texas Instruments |
| manufacturer type | High Speed Amplifier |
| maximum dual supply voltage (v) | ±16 |
| maximum input bias current (ua) | 6@±5V |
| maximum input offset current (ua) | 0.25@±5V |
| maximum input offset voltage (mv) | 2@±5V |
| maximum operating temperature: | +70 C |
| maximum operating temperature (°c) | 70 |
| maximum power dissipation (mw) | 629 |
| maximum single supply voltage (v) | 32 |
| maximum supply current (ma) | 9@±5V |
| minimum cmrr (db) | 90 |
| minimum cmrr range (db) | 90 to 95 |
| minimum dual supply voltage (v) | ±4.5 |
| minimum operating temperature: | 0 C |
| minimum operating temperature (°c) | 0 |
| minimum psrr (db) | 85 |
| minimum single supply voltage (v) | 9 |
| mounting | surface mount |
| mounting style: | SMD/SMT |
| number of channels: | 1 Channel |
| number of channels per chip | 1 |
| operating supply current: | 8.5 mA |
| operating supply voltage: | 33 V |
| output current per channel: | 90 mA |
| package / case: | SOIC-8 |
| packaging | Tape and Reel |
| партномер | 8006463833 |
| part status | active |
| pcb changed | 8 |
| pd - power dissipation: | 629 mW |
| pin count | 8 |
| power supply type | Single|Dual |
| ppap | No |
| process technology | BiCOM |
| product: | Operational Amplifiers |
| product category: | High Speed Operational Amplifiers |
| product type: | Op Amps-High Speed Operational Amplifiers |
| psrr - power supply rejection ratio: | 85 dB |
| series: | THS4031 |
| shut down support | No |
| sr - slew rate: | 100 V/us |
| standard package name | SO |
| subcategory: | Amplifier ICs |
| supplier package | SOIC |
| supply voltage - max: | 32 V |
| supply voltage - min: | 9 V |
| type | High Speed Amplifier |
| typical dual supply voltage (v) | ±5|±9|±12|±15 |
| typical gain bandwidth product (mhz) | 120 |
| typical input noise voltage density (nv/rthz) | 1.6@±5V |
| typical noninverting input current noise density (pa/rthz) | 1.2@±5V |
| typical output current (ma) | 70@±5V |
| typical settling time (ns) | 80 |
| typical slew rate (v/us) | 80@±5V |
| typical voltage gain (db) | 95 |
| вес, г | 0.5 |
| voltage gain db: | 98 dB |
| vos - input offset voltage: | 2 mV |
