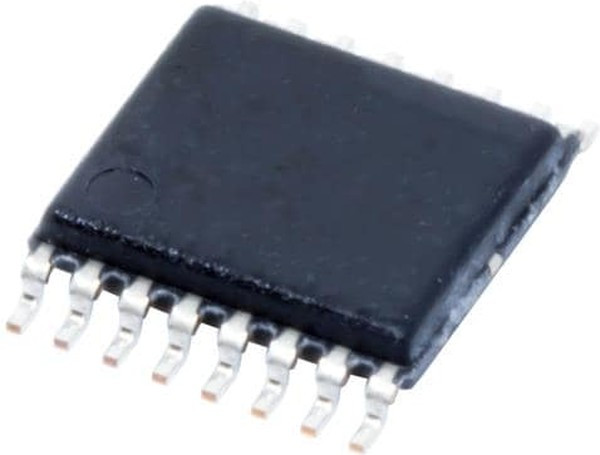

SN65LVDS390PW, Высокоскоростной линейный приемник, LVDS, 630Мб/с, 4 приемника, 3В до 3.6В, TSSOP-16

Полупроводники - Микросхемы\Драйверы и Интерфейсы\Линейные ДрайверыThe SN65LVDS390PW is a quad differential Line Receiver implements the electrical characteristics of low-voltage differential signalling (LVDS). This signalling technique lowers the output voltage levels of 5V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds and allow operation with a 3V supply rail. Any of the differential receivers provides a valid logical output state with a ±100mV differential input voltage within the input common-mode voltage range. The input common-mode voltage range allows 1V of ground potential difference between two LVDS nodes. Additionally, the high-speed switching of LVDS signals almost always requires the use of a line impedance matching resistor at the receiving end of the cable or transmission media. The LVDT products eliminate this external resistor by integrating it with the receiver. • Open-circuit failsafe• Flow-through pin-out• Integrated 110R line termination resistors on LVDT products• Bus-terminal ESD exceeds 15kV• 2.6ns Typical propagation delay time• 100ps Typical output skew• <1ns Part-to-part skew• 630Mbps Signalling rate• Green product and no Sb/Br
